DG500B-5.0-04P-14-00A(H)

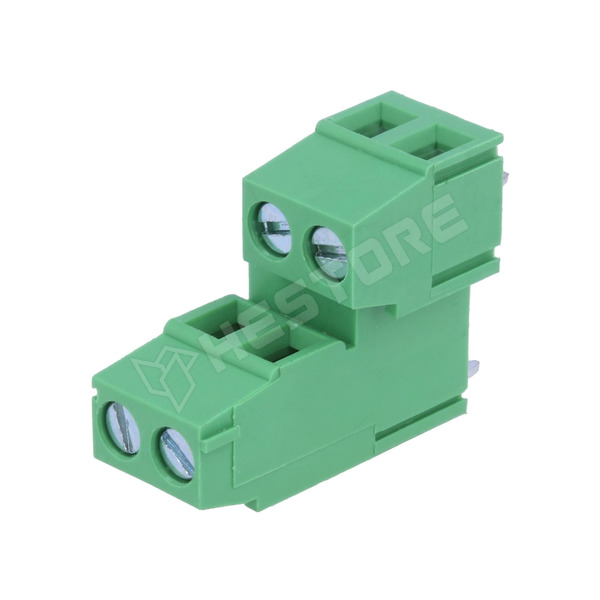

PCB terminal block, double deck, angled 90°, 5mm, Number of ways: 4, 2.5mm², green

DG500B-5.0-04P-14-00A(H) / PCB terminal block, double deck, angled 90°, 5mm, Number of ways: 4, 2.5mm<sup>2</sup>, green (DG500B-5.0-04P-14-00A(H) / DEGSON ELECTRONICS)

Manufacturer partno	DG500B-5.0-04P-14-00A(H)
RoHS	yes
Manufacturer	DEGSON ELECTRONICS
Connector	terminal, rail, terminál
Colour	green
Length	12.5mm
Operating temperature	-40...105°C
Connector variant	double deck, PCB terminal block
Electrical mounting	THT, screw terminal, cage clamp
Mechanical mounting	on PCBs
Spatial orientation	angled 90°
Contacts pitch	5mm
Type of pin configuration	2x2
Rated voltage	300V
Current rating	10A
Contact plating	tinned
Number of ways	4
Conform to the norm	CE, UL, VDE
Contact material	brass
Body material	polyamide 66
Flammability rating	UL94V-0
Wire size	24AWG...12AWG
Height	25.2mm
Connectors features	assembling possibility
Depth	21.6mm
Wire cross section	2.5mm²
Type of connector	PCB terminal block
Vezeték metszete	2.5mm²
Vezeték mérete	24AWG...12AWG

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.464.87

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	344 Ft
5+	215 Ft
10+	192 Ft
20+	179 Ft
50+	169 Ft
