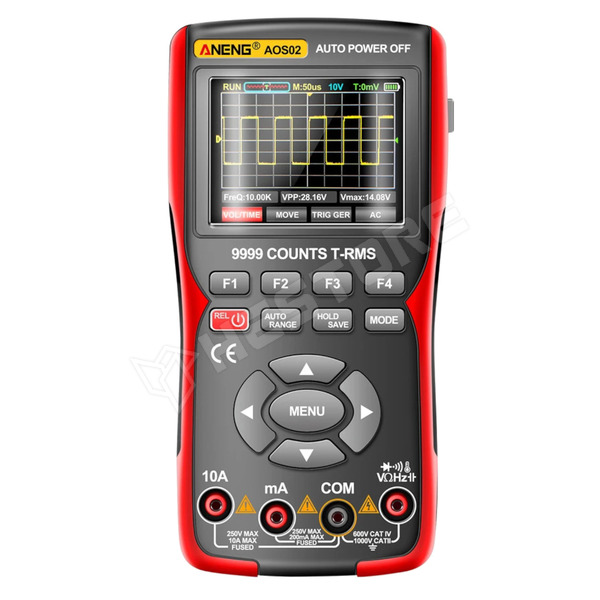

AOS02

Name: AOS02
Brand: ANENG
SKU: 100.463.63
Availability: InStock

Multimeter, oscilloscope, 1 channel, 10MHz, 48Msps

Oscilloscope technical specifications:
Bandwidth: 10MHz
Input Impedance: 1MΩ, 16pF
Maximum input voltage: 150V DC + AC peak)
Sampling: 1.5sps...48Msps
Input sensitivity: 20mV/div...10V/div
Time base: 50ns/div---20s/div (20ppm)
Memory record length: 64kbyte
Trigger mode: normal, automatic, single time
Trigger: Rising edge, falling edge

Manufacturer	ANENG
Temperature measuring range	-20...1000°C
Temperature measurement accuracy	±(2,5% + 5 digits)
Overall dimensions (W x D x H)	89 x 39 x 176mm
Measuring instrument features	diode and continuity test with buzzer, automatic power-off, True RMS
Resistance measuring range	0.01Ω...99.99MΩ
Resistance measuring accuracy	±(1% + 3 digits), ±(3% + 5 digits), ±(1,5% + 3 digits), ±(0,5% + 3 digit)
Capacitance measuring range	0.001nF...99.99mF
Capacitance measuring accuracy	±(5% + 5 digits)
DC voltage measuring range	0.1mV...999.9V, 0.001mV...99.99mV
DC voltage measuring accuracy	±(0,5% + 3 digit)
Frequency measuring range	0.01Hz...999.9kHz
Frequency measuring accuracy	±(0,1% + 2 digits)
Temperature measurement resolution	1°C
AC current measuring range	0.1mA...9.999A, 1μA...99.99mA
AC voltage measuring range	0.1mV...750V, 0.001mV...99.99mV
AC voltage measuring accuracy	±(1% + 3 digits)
DC current measuring range	0.1mA...9.999A, 1μA...99.99mA
DC current measuring accuracy	±(1% + 3 digits), ±(0,8% + 3 digits)
AC current measuring accuracy	±(1% + 3 digits), ±(1.2% + 3 digits)
Kind of display used	LCD
Type of rechargeable battery	1 x 18650, 3.7V Lithium Battery
