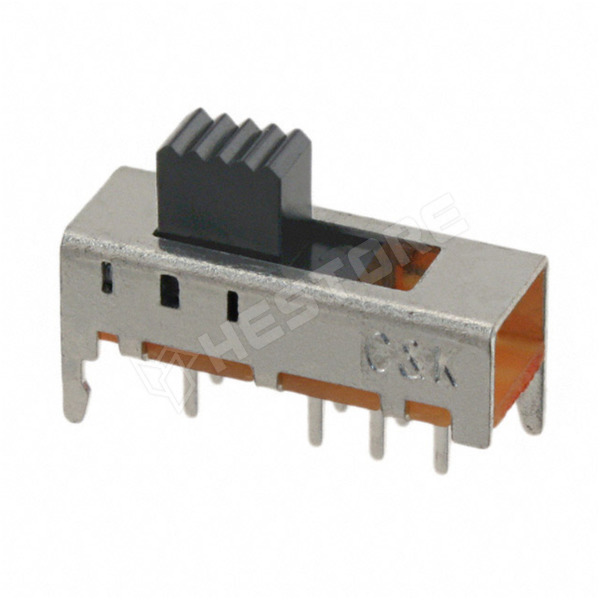

OS203012MU5QP1

Switch, DP3T, 17x6x5.2mm, ON-ON-ON

Manufacturer partno	OS203012MU5QP1
RoHS	yes
Manufacturer	C&K
Series	OS
Mounting	THT
Terminal pitch	2mm
Operating temperature	-30...70°C
Body dimensions	17x6x5.2mm
Application	personal computer, telecommunication
Leads	for soldering
Min. insulation resistance	0.1GΩ
Row pitch	2.5mm
Type of switch	slide
Stable positions number	3
Number of positions	3
Switching method	ON-ON-ON
Contacts configuration	DP3T
Max. contact resistance:	20mΩ
Electrical life	10000 cycles
Contact resistance	20mΩ
DC contacts rating @R	0.3A / 30V DC
