TP4056-1A-PROT-USBC

Name: TP4056-1A-PROT-USBC
Brand: HESTORE
SKU: 100.489.89
Availability: InStock

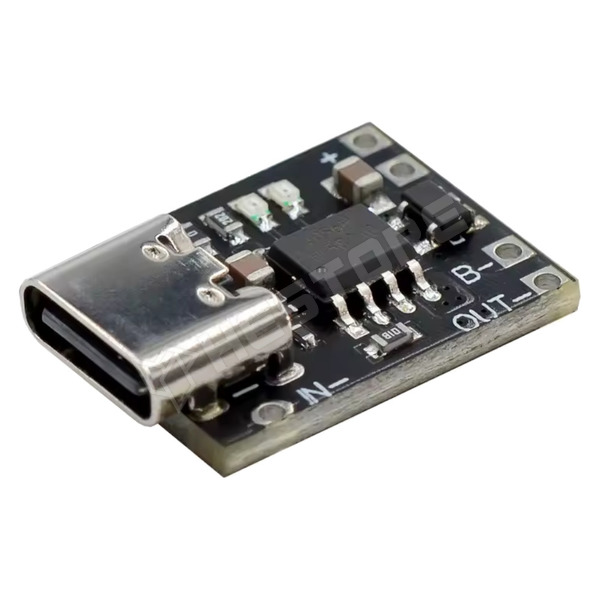

Li-Ion/Li-Po charging module, 4.2V DC, 1A, USB-C, with protection

• Power supply: 5V USB-C
• Output voltage: 4.2V DC (±1.5%) (Li-Ion cell final voltage)
• Maximum charging current: 1000mA
• Charging mode: constant current / constant voltage (CC/CV)
• Other technical data:
- Automatic recharge the cell voltage s below 4.05V
- Charging status display (G – charging, STDBY – charging complete)
- Thermal protection: ~145°C chip core temperature, automatic current limitation
- the charging current s to 100mA after reaching the final trickle charge voltage, the charging cycle stops automaticy.
- Overcharge protection: 4.25...4.35V
- Overdischarge protection: 2.3...2.5V
- Overcurrent protection 2.7...4.4A

• Operating temperature: −40...+85°C

• Note:
- Only sui for 1-cell Li-Ion/Li-Pol batteries, not sui for series-connected cells.
- Cooling is via the PCB g plane.

Input voltage	5V DC
Maximum output current	1A
Dimensions	18 x 14mm
Input connector type	USB-C socket

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.489.89
