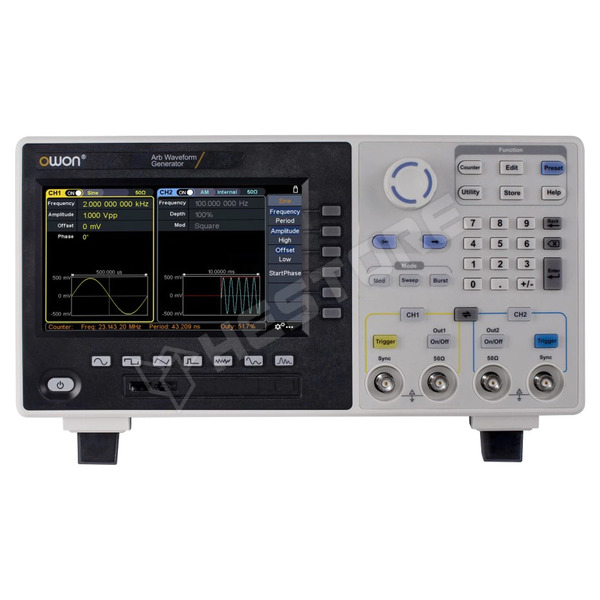

XDG2035

Function and arbitrary generator, 35MHz, 2 channels, LCD 7", 800x480, LabVIEW

XDG2035 / Function and arbitrary generator, 35MHz, 2 channels, LCD 7

Manufacturer partno	XDG2035
Manufacturer	OWON
Series	XDG2000
Number of channels	2
Interface	USB, RS232, LAN
Dimensions	340x177x90mm
Display resolution	800x480
Additional functions	frequency meter
Plug variant	EU
Kind of modulation	FM, ASK, AM, FSK, PWM, PSK, PM, DSB-AM, BPSK, OSK, QPSK, SUM
Standard equipment	mains cable, USB cable, BNC-BNC cable
Sampling	500Msps
Type of generator	arbitrary, function
Memory record length	10Mpts
Vertical resolution	14bit
Waveform frequency range	1µHz...3MHz (ramp waveform), 1µHz...15MHz (arbitrary waveform), 1µHz...15MHz (pulse waveform), 1µHz...15MHz (rectangular waveform), 1µHz...35MHz (sinus waveform)
Kind of display used	LCD 7"
Waveforms	rectangular, switched-mode, impulse, négyszögletes, arbitrary, noise, sine, harmonic
Software	LabVIEW
Maximum waveform frequency	35MHz

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.458.70

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	140 434 Ft
5+	134 519 Ft
10+	132 200 Ft
20+	129 890 Ft
50+	126 436 Ft
