H5150-14PDW000R

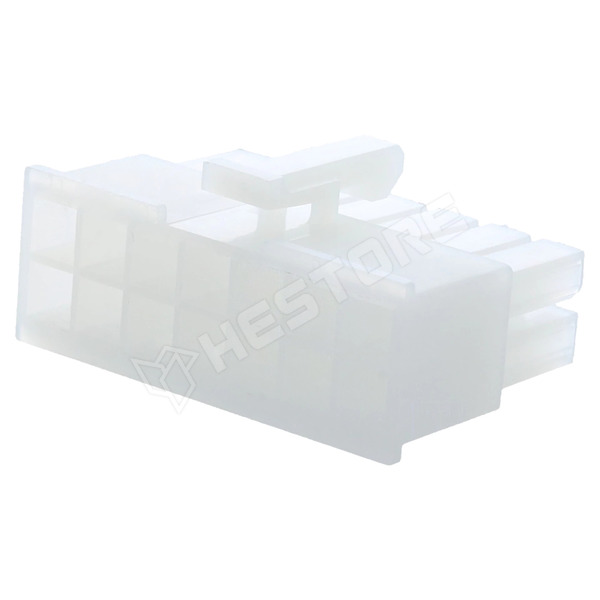

N42W power connector housing, 4.2mm, 14pin

Manufacturer partno	H5150-14PDW000R
RoHS	yes
Manufacturer	HSM
Connector	plug
Operating temperature	-25...85°C
Connector variant	w/o contacts, wire-wire/PCB
Kind of connector	socket, female
Number of pins	14
Mechanical mounting	for cable
Enclosure material	polyamide
Contacts pitch	4.2mm
Type of pin configuration	2x7
Rated voltage	600V
A dimension	25.2mm
B dimension	30.8mm
Flammability rating	UL94V-2
Connector series	N42W
Locking system	latch, terminal
Type of connector	wire-wire/PCB

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.454.39

Add to favorites

Quantity (pcs):

Unit price gross (netto)

1+	180 Ft (141 Ft +VAT)
5+	112 Ft (88,41 Ft +VAT)
10+	84,61 Ft (66,62 Ft +VAT)
20+	70,26 Ft (55,32 Ft +VAT)
50+	60,74 Ft (47,83 Ft +VAT)

The price includes 27% VAT.
