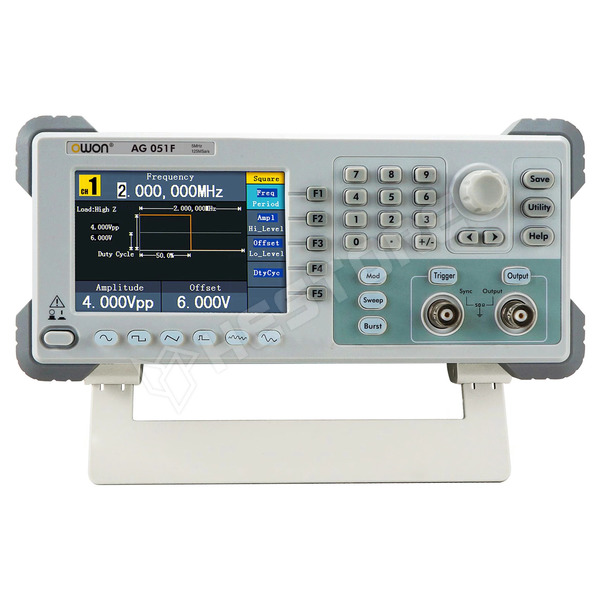

AG051F

Arbitrary and function generator, 5MHz, 1 channel, LCD 4.3", 480x320

AG051F / Arbitrary and function generator, 5MHz, 1 channel, LCD 4.3

Manufacturer partno	AG051F
Manufacturer	OWON
Number of channels	1
Interface	USB
Dimensions	235x110x295mm
Display resolution	480x320
Plug variant	EU
Kind of modulation	FM, AM, FSK, PM, burst, modulation frequency 2m...20.00KHz (FSK 2m...100KHz), sweep
Measuring instrument features	Direct Digital Synthesized (DDS) technology, supports SCPI
Standard equipment	mains cable, USB cable, BNC-BNC cable
Sampling	125Msps
Type of generator	arbitrary, function
Memory record length	8kpts
Vertical resolution	14bit
Waveform frequency range	1µHz...5MHz (négyszögjel), 1µHz...5MHz (pulse waveform), 1µHz...1MHz (ramp waveform), 1µHz...5MHz (arbitrary waveform), 1µHz...5MHz (sinus waveform)
Kind of display used	LCD 4,3"
Waveforms	rectangular, switched-mode, impulse, négyszögletes, sinus, arbitrary, noise, ramp
Software	LabVIEW
Maximum waveform frequency	5MHz

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.450.08

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	86 866 Ft
5+	83 147 Ft
10+	81 705 Ft
20+	80 274 Ft
50+	78 137 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 25
