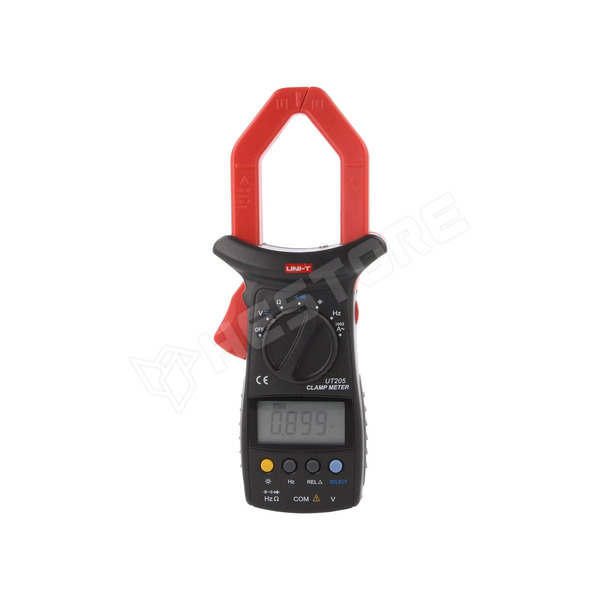

UT205

Digital multimeter with padlock

Manufacturer partno	UT205
Manufacturer	UNI-T
Dimensions	257x106.4x52mm
Conform to the norm	EN61010 600V CAT II, EN61010 300V CAT III
Power supply	battery 6F22 9V x1
Additional functions	torch
Type of meter	multifunction
Measuring instrument features	HOLD function, automatic power-off, low battery indicator, autoranging
Resistance measuring range	4kΩ, 100mΩ...400Ω, 40kΩ, 400kΩ, 4MΩ, 40MΩ
Resistance measuring accuracy	±(1% + 2 digits)
Capacitance measuring range	100µF, 40µF, 4µF, 40nF, 400nF
DC voltage measuring range	600V, 400V, 40V, 4V, 100µV...400mV
DC voltage measuring accuracy	±(0,8% + 1 digit)
Frequency measuring range	10...10MHz
Diode test	yes
Continuity test	acoustic indication, <100Ω
Standard equipment	test leads, crocodile clips
AC current measuring range	400A, 1kA
AC voltage measuring range	600V, 400V, 40V, 1mV...4V
Pollution degree	2
Weight with battery	522g
AC voltage measuring accuracy	±(1,2% + 5 digits)
AC current measuring accuracy	±(1,5% + 5 digits)
Max. diameter of measured cable	40mm
Duty cycle factor measuring range	0.1...99.9%
Kind of display used	with a backlit, LCD (3999)
Measurement	resistance, DC voltage, AC current, AC voltage, frequency, duty cycle, continuity
Battery/ rechargeable battery	battery 6F22 9V x1
Mérőműszer típusa	digital, pliers, pincers type
