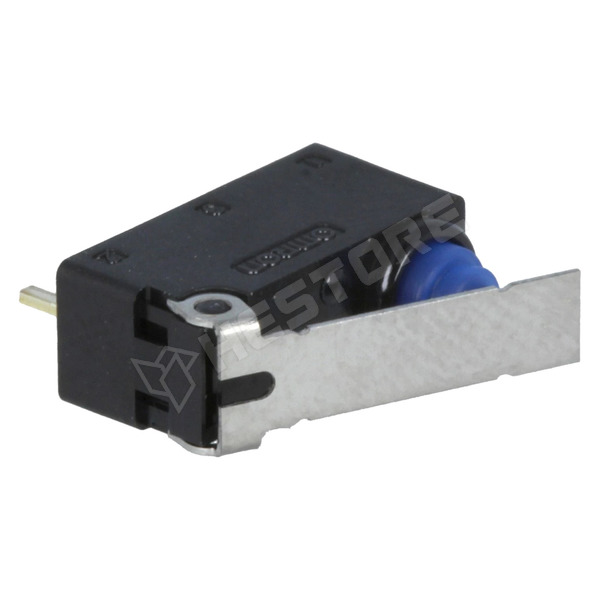

D2HW-A211D

Microswitch, SNAP ACTION, with mechanism, SPDT, 0.1A/125V AC

Manufacturer partno	D2HW-A211D
RoHS	yes
Manufacturer	OMRON OCB
Series	D2HW-A
Terminal pitch	5.08mm
Operating temperature	-40...85°C
Body dimensions	13.3x5.3x6.5mm
Contact plating	gold-plated
Leads	for PCB
IP rating	IP67
Mechanical durability	1000000 cycles
Type of switch	microswitch SNAP ACTION
Stable positions number	1
Number of positions	2
Switching method	ON-(ON)
Contacts configuration	SPDT
Switches features	with lever
Operating Force	0.75N
Lever length	13mm
Max. contact resistance:	100mΩ
Electrical life	100000 cycles
DC contacts rating @R	2A / 12V DC
AC contacts rating @R	0.1A / 125V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.445.47

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 115 Ft
5+	910 Ft
10+	874 Ft
20+	849 Ft
50+	820 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
On request
