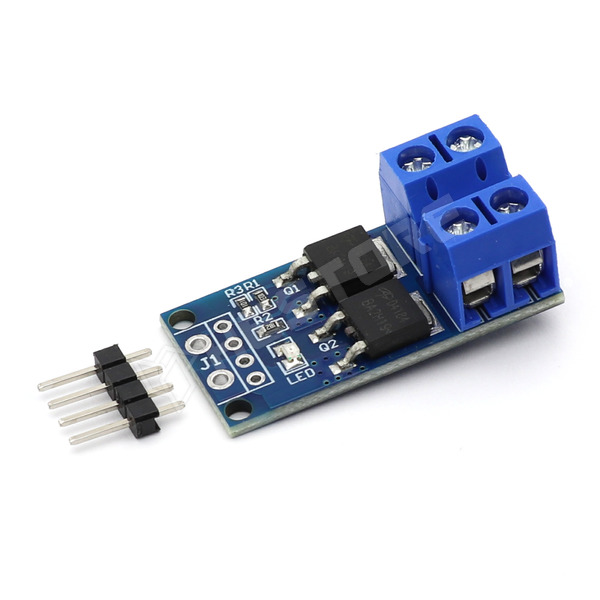

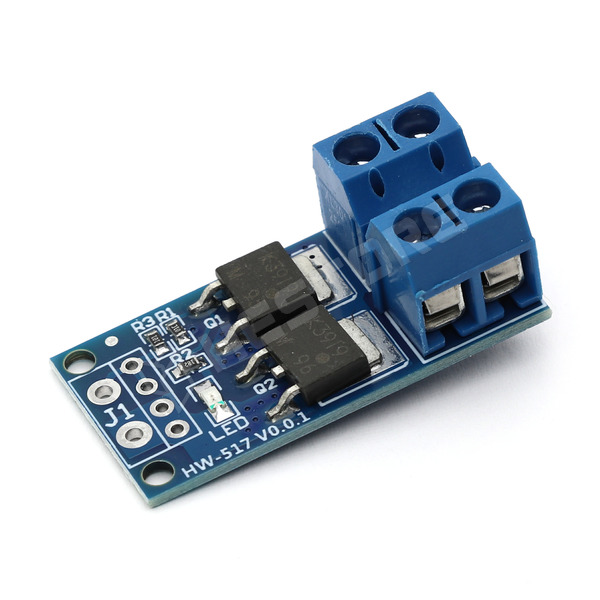

MTD15-400
MOSFET switch driver module, 15A, 400W
Two AOD4184A type FETs connected in parallel, gate with 100Ω series and 10kΩ pull-down resistors, and an indicator LED with 1.8kΩ ballast.
At low gate voltages (also), consider the characteristics of the semiconductor!
At low gate voltages (also), consider the characteristics of the semiconductor!
| Connector variant | screw terminals, header strips |
|---|---|
| Supply voltage | 5...36V DC |
| Dimensions | 33.5 x 16.5mm |
| Switching capacity | 400W |
| Switched current | 15A |
| Control voltage | 3.3...20V DC |
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.489.01
Quantity (pcs):
Unit price excl. VAT
| 1+ | 431 Ft |
|---|---|
| 5+ | 269 Ft |
| 10+ | 244 Ft |
| 20+ | 230 Ft |
| 50+ | 218 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 25 |
| 10-15 workdays | > 10000 |
