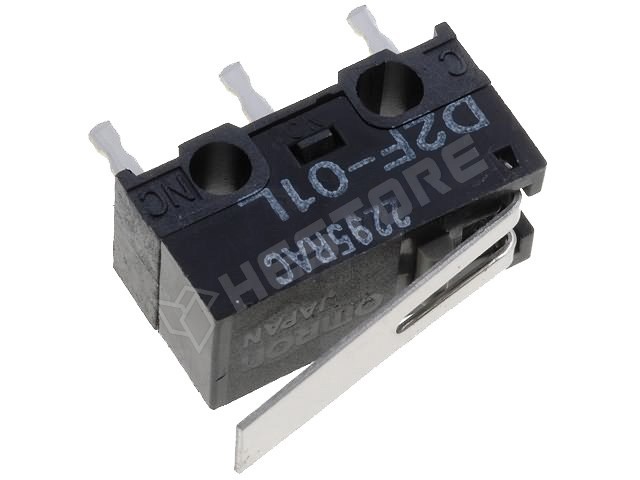

D2F221

Mikrokapcsoló nyelvvel 0,1A/30Vdc

RoHS	no
Manufacturer	OMRON
Terminal pitch	5.08mm
Operating temperature	-25...85°C
Body dimensions	12.8 x 5.8 x 6mm, 12.8x5.8x6mm
Leads	straight, for PCB
IP rating	IP40
Mechanical durability	1000000 cycles
Test voltage	1.5kV
Type of switch	microswitch, microswitch SNAP ACTION
Stable positions number	1-position
DC contacts rating	0.1 A / 30 VDC
Switching method	ON-(ON)
Contacts configuration	SPDT
Switches features	with lever
Operating Force	1.5N
Lever length	14mm
Manufacturer series	D2F
DC contacts rating @R	0.1A / 30V DC
Összes pozíciók száma	2
