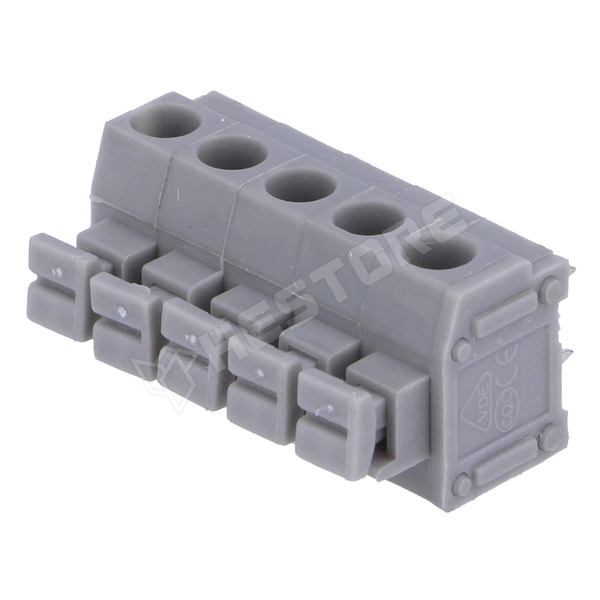

DG235-5.0-05P-11-00A(H)

PCB terminal block, with push button, 5 pin, 90°, RM5mm, 1.5mm2

Manufacturer partno	DG235-5.0-05P-11-00A(H)
RoHS	yes
Manufacturer	DEGSON ELECTRONICS
Connector	terminal, rail
Colour	grey
Length	25mm
Operating temperature	-40...105°C
Connector variant	with push button, PCB terminal block
Electrical mounting	THT, spring clamp
Mechanical mounting	on PCBs
Enclosure material	polyamide 66
Spatial orientation	angled 90°
Contacts pitch	5mm
Type of pin configuration	1x5
Rated voltage	300V
Current rating	8A
Contact plating	tinned
Number of ways	5
Conform to the norm	CE, UL, VDE
Contact material	phosphor bronze
Body material	polyamide 66
Flammability rating	UL94V-0
Wire size	1.5mm², 20AWG...16AWG
Height	15.5mm
Connectors features	assembling possibility
Depth	12.5mm
Wire cross section	1.5mm²
Type of connector	PCB terminal block

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.441.14

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	300 Ft
5+	188 Ft
10+	164 Ft
20+	151 Ft
50+	141 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 20
3 workdays	> 2000
