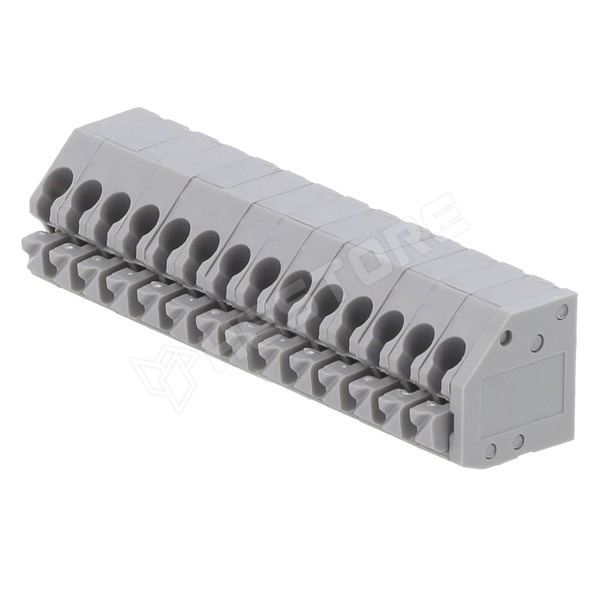

DG250-3.5-14P-11-00A(H)
PCB terminal block, with push button, angled 45°, 3.5mm, Number of ways: 14, 200...750µm2
| Manufacturer partno | DG250-3.5-14P-11-00A(H) |
|---|---|
| Manufacturer | DEGSON ELECTRONICS |
| Connector | terminal, rail |
| Colour | grey |
| Length | 50.5mm |
| Operating temperature | -40...105°C |
| Connector variant | with push button, PCB terminal block |
| Electrical mounting | THT, spring clamp |
| Mechanical mounting | on PCBs |
| Enclosure material | polyamide 66 |
| Spatial orientation | angled 45°, angled 45° |
| Contacts pitch | 3.5mm |
| Type of pin configuration | 1x14 |
| Rated voltage | 400V |
| Current rating | 5A |
| Contact plating | tinned |
| Number of ways | 14 |
| Conform to the norm | CE, UL, VDE |
| Contact material | phosphor bronze |
| Body material | polyamide 66 |
| Flammability rating | UL94V-0 |
| Wire size | 22AWG...18AWG, 200...750µm2 |
| Height | 11.5mm |
| Depth | 12mm |
| Wire cross section | 200...750µm2 |
| Type of connector | PCB terminal block |
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/
Part.No: 100.441.10
Quantity (pcs):
Multiply:
360 pcs
360 pcs
Unit price excl. VAT
| 360+ | 306 Ft |
|---|
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| On request | |
