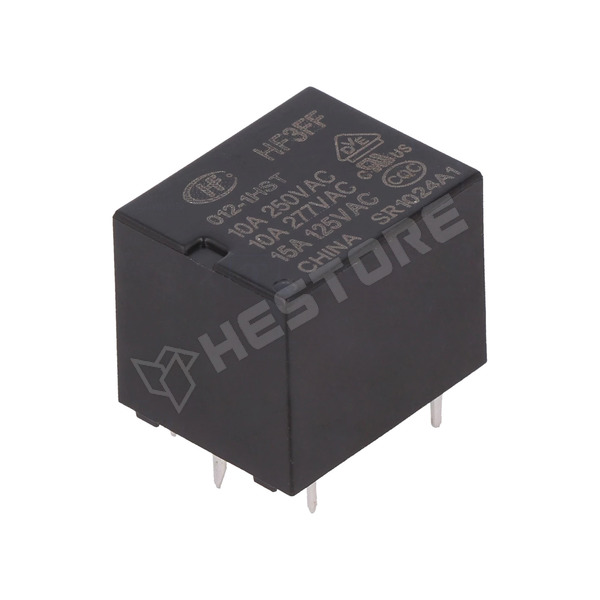

HF3FF/012-1HST

Relay, SPST-NO, 12V DC, 10A / 277V AC, 10A / 28V DC

Manufacturer partno	HF3FF/012-1HST
Manufacturer	HONGFA RELAY
Mounting	PCB
Terminal pitch	2mm
Operating temperature	-40...70°C
Body dimensions	19x15.5x15.2mm
Body dimensions	19x15.5x15.2mm
Contact material	AgSnO₂
Contacts configuration	SPST-NO
Type of relay	electromagnetic
Rated coil voltage	12V DC
Contact current max.	15A
Switched voltage	max. 277V AC, max. 28V DC
Relay variant	miniature
Coil resistance	400Ω
Coil voltage min.	9V DC
Coil voltage max.	15.6V DC
Operate time	10ms
Release time	5ms
Coil power consumption	360mW
Contact resistance	100mΩ
DC contacts rating @R	10A / 28V DC
AC contacts rating @R	10A / 277V AC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.440.80

Add to favorites

Quantity (pcs):

Packing:
100 pcs / carton

Unit price excl. VAT

1+	531 Ft
5+	350 Ft
10+	323 Ft
20+	308 Ft
50+	293 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 5
10-15 workdays	> 5000
