EEU-ED2W100

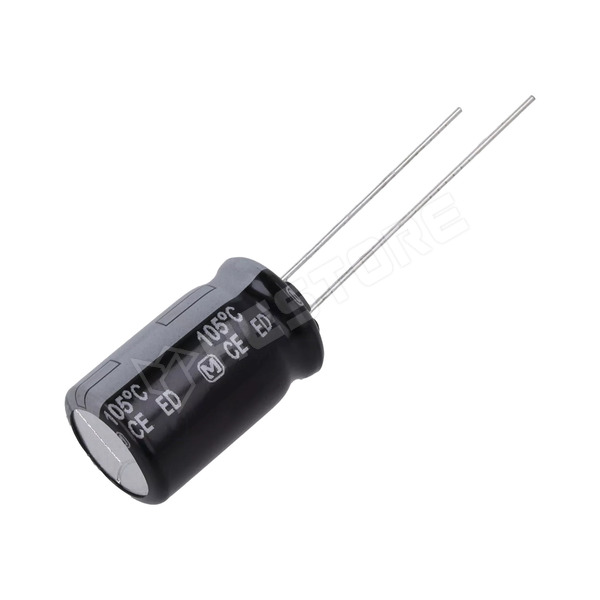

Capacitor, electrolytic, 10µF, 450V DC, 5mm, Ø12.5x20mm, -25...105°C

Manufacturer partno	EEUED2W100
RoHS	yes
Manufacturer	PANASONIC
Series	ED
Mounting	THT
Tolerance	±20%
Type of capacitor	electrolytic
Capacitance	10µF
Operating voltage	450V DC
Terminal pitch	5mm
Operating temperature	-25...105°C
Body dimensions	Ø12.5x20mm
Service life	10000h
Operating current	0.35A

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.484.04

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	509 Ft
5+	329 Ft
10+	303 Ft
20+	287 Ft
50+	274 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
3 workdays	> 7500
