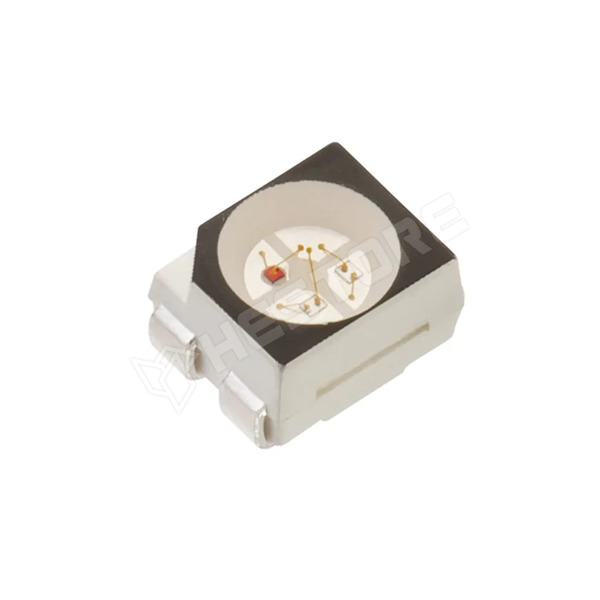

XL-3528RGBW-HM

LED, 3528, RGB, common anode, 20mA, -20...80℃, 120°

RoHS	yes
Manufacturer	XINGLIGHT
Case	3528
Type of diode	LED
Mounting	SMD
Operating temperature	-25...80°C
Number of pins	4
Viewing angle	120°
Front	flat
LED lens	transparent
LED current	20mA
Luminosity of red colour	171-300mcd
Luminosity of green colour	600-853mcd
Wavelength of red colour λd	618-625nm
Wavelength of green colour λd	515...525nm
Common electrode	anode
Dimensions	3.5x2.8x1.9mm
Luminosity of blue colour	110-200mcd
Wavelength of blue colour λd	460...472nm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.440.12

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	£ 0.187
5+	£ 0.112
10+	£ 0.070
20+	£ 0.047
50+	£ 0.032

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 200
10-15 workdays	> 100000
