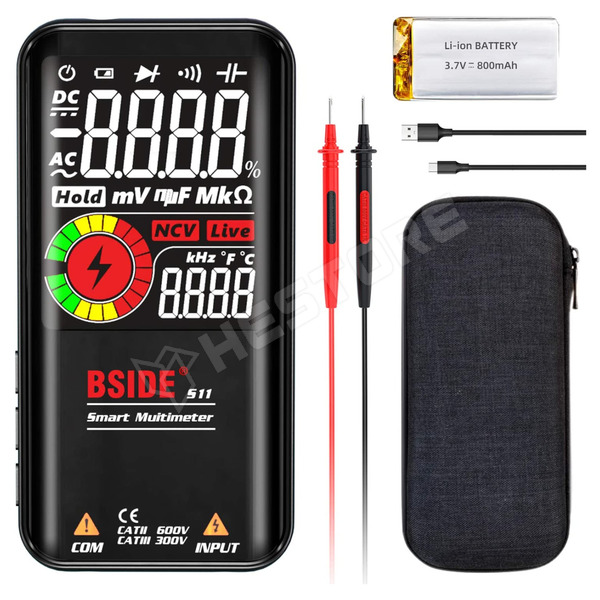

BSIDE-S11

Digital multimeter, 3.5" color LCD display, auto measuring limit switch, li-ion battery

Dimensions	143 x 70 x 16mm
Type of display used	colour, LCD (9999)
Kit contents	2x test lead, case, USB cable
Measuring instrument features	with a backlit, diode and continuity test with buzzer, temperature measurement, LED lamp, True RMS, contactless voltage detector, 3.7V Lithium Battery, live wire check
Resistance measuring range	1Ω...60MΩ
Resistance measuring accuracy	1Ω...999.9Ω: ±(2%+5digit), 1kΩ...60MΩ: ±(1%+3digit)
Capacitance measuring range	1nF...99.99mF
Capacitance measuring accuracy	1...999.9nF: ±(6%+5digit), 1uF...99.99mF: ±(3%+3digit), 1...60KHz: ±(1%+5digit)
DC voltage measuring range	0.8...620V
DC voltage measuring accuracy	±(0.5%+3digit)
Frequency measuring range	1...1000Hz (2...10V AC), 1...60KHz (10...620V AC)
Frequency measuring accuracy	1...1000Hz: ±(1%+5digit)
Diode test	yes
Continuity test	acoustic and optical indication
AC voltage measuring range	2.2...620V
AC voltage measuring accuracy	±(0.5%+3digit)
Duty cycle factor measuring range	0.1...99.9%
Duty cycle factor measurement accuracy	±(3%+5digit)

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.439.85

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	13 707 Ft
5+	12 986 Ft
10+	12 744 Ft
20+	12 512 Ft
50+	12 174 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In order	> 3
10-15 workdays	> 10000
