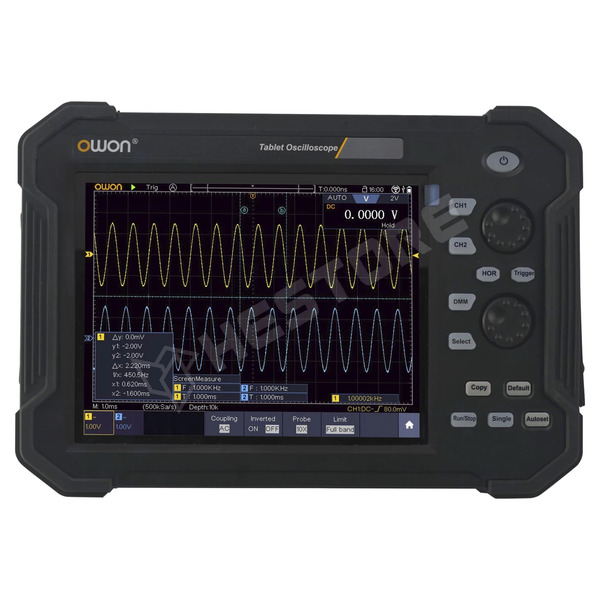

TAO3102

Handheld oscilloscope, 2 channels, 100MHz, touch screen, TFT 8" (800x600)

TAO3102 / Handheld oscilloscope, 2 channels, 100MHz, touch screen, TFT 8

Manufacturer partno	TAO3102
Manufacturer	OWON
Weight	1.7kg
Series	TAO3000
Number of channels	2
Dimensions	270x191x48mm
Power supply	rechargeable battery Li-Ion 7,4V 8000mAh x1
Additional functions	multimeter
Plug variant	EU
Measuring instrument features	mathematical functions: addition, subtraction, division, multiplication and FFT, adatregisztráció funkció, advenced trigger and bus decoding function
Standard equipment	mains, 2 oscilloscope probes, mains cable, BNC adapter, bővítő modul, screw mounted clamp, probe adjust, adapter AC, test leads ( 2pcs.), USB micro cable
Sampling	1Gsps
Type of oscilloscope	handheld oscilloscope
Band	100MHz
Trigger	I2C, SPI, CAN, video signal, rising-edge, falling-edge, pulse, runt, pattern width, window, serial protocol, pulse, RS232/UART, runt, slope, timeout
Rise time	≤3.5ns
Input impedance	1MΩ/15pF
Information	bus decoding:I2C,SPI,RS232,CAN
Input sensitivity	1mV/div...10V/div
Memory record length	40Mpts
Time base	1n...1ks/div
Vertical resolution	8bit
Trigger modes	normal, automatic, single
Input coupling	AC, DC, GND
Trigger source	CH1, CH2
Kind of display used	touch screen, TFT 8" (800x600)
Software	LabVIEW
Measurement memory	100

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.436.61

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	203 292 Ft
5+	194 801 Ft
10+	191 451 Ft
20+	188 111 Ft
50+	183 111 Ft
