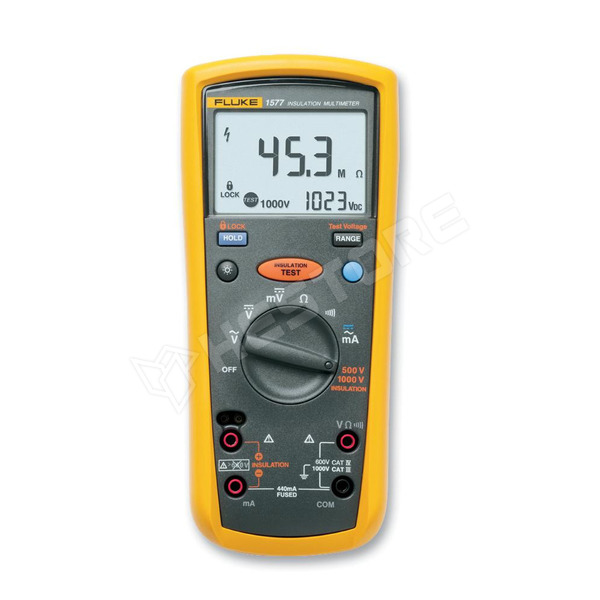

FLUKE 1577

Digitális multiméter LCD 6000

Manufacturer partno	FLUKE 1577
RoHS	yes
Manufacturer	FLUKE
IP rating	IP40
Conform to the norm	EN61010 1000V CAT III, EN61010 600V CAT IV
Power supply	4 batteries 1,5V LR6 (AA)
Type of meter	digital multimeter
Measuring instrument features	HOLD function, automatic power-off, auto and manual ranging, indicates incorrect connection of test leads, automatic discharge of capacitance charge function, insulation resistance test, automatic stop of insulation test when voltage higher than 30V is detected
Optional equipment	FLK-C25 soft cover
Resistance measuring range	6kΩ, 60kΩ, 600kΩ, 6MΩ, 100mΩ...600Ω, 50MΩ
Resistance measuring accuracy	±(1,2% + 2 digits)
DC voltage measuring range	600V, 1kV, 60V, 6V, 0.1...600mV
DC voltage measuring accuracy	±(0,2% + 2 digits)
Continuity test	acoustic signal for R<25Ω
Standard equipment	battery, harda case FLK-C101, crocodile clips FLK-AC285, test leads FLK-TL224 SureGrip, test probe FLK-TP165X
AC current measuring range	400mA, 0.01...60mA
AC voltage measuring range	600V, 1kV, 60V, 6V, 0.1...600mV
Weight with battery	550g
AC voltage measuring accuracy	±(2% + 3 digits)
DC current measuring range	400mA, 0.01...60mA
DC current measuring accuracy	±(1% + 2 digits)
AC current measuring accuracy	±(2% + 2 digits)
True effective value measurement	True RMS AC
Kind of display used	with a backlit, LCD (6000)
Measurement	resistance, DC voltage, AC current, AC voltage, DC current, insulation resistance
Insulation resistance measuring ranges	0,1MΩ...60M/500MΩ @ 500V, 0,1MΩ...60MΩ @ 1000V
Insulation resistance measuring accuracy	±(2% + 5 digits)
Dimensions (W x H x D)	100x203x50mm
