DG35C-B-05P-13-200AH

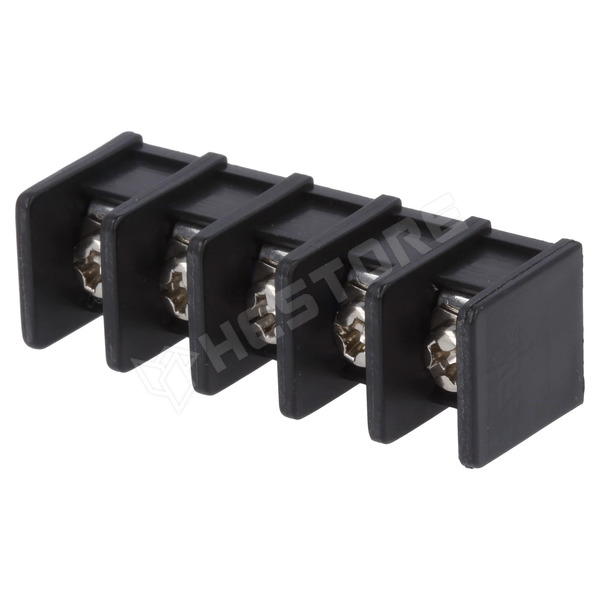

PCB terminal block, straight, 8.25mm, Number of ways: 5, 4mm², black

DG35C-B-05P-13-200AH / PCB terminal block, straight, 8.25mm, Number of ways: 5, 4mm<sup>2</sup>, black (DG35C-B-05P-13-200AH / DEGSON ELECTRONICS)

Manufacturer partno	DG35C-B-05P-13-200AH
RoHS	yes
Manufacturer	DEGSON ELECTRONICS
Connector	terminal
Colour	black
Length	43.15mm
Operating temperature	-40...105°C
Connector variant	PCB terminal block
Electrical mounting	THT, screw terminal
Mechanical mounting	on PCBs
Spatial orientation	straight
Contacts pitch	8.25mm
Type of pin configuration	1x5
Rated voltage	300V
Current rating	20A
Contact plating	tinned
Number of ways	5
Conform to the norm	CE, UL, VDE
Contact material	copper alloy
Body material	PA66
Flammability rating	UL94V-0
Wire size	22AWG...12AWG
Height	15.1mm
Depth	13.6mm
Wire cross section	4mm²

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.425.90

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	538 Ft
5+	356 Ft
10+	330 Ft
20+	314 Ft
50+	300 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 3
3 workdays	> 200
