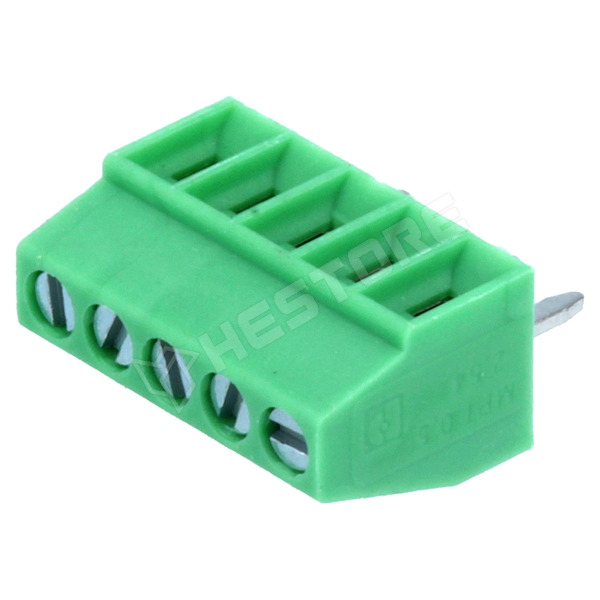

MPT0.5/5-2.54

PCB terminal block, angled 90°, 2.54mm, Number of ways: 5, 500µm², green

MPT0.5/5-2.54 / PCB terminal block, angled 90°, 2.54mm, Number of ways: 5, 500µm<sup>2</sup>, green (MPT 0,5/ 5-2,54 - 1725685 / PHOENIX CONTACT)

Manufacturer partno	MPT 0,5/ 5-2,54 - 1725685
Manufacturer	PHOENIX CONTACT
Connector	terminal
Colour	green
Length	13.16mm
Connector variant	PCB terminal block
Electrical mounting	THT, screw terminal, cage clamp
Mechanical mounting	on PCBs
Spatial orientation	angled 90°
Contacts pitch	2.54mm
Type of pin configuration	1x5
Rated voltage	160V
Current rating	6A
Contact plating	tinned
Number of ways	5
Conform to the norm	UL, VDE, CSA
Body material	polyamide
Flammability rating	UL94V-0
Wire size	26AWG...20AWG
Height	8.5mm
Depth	6.2mm
Wire cross section	500µm²

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.425.89

Add to favorites

Quantity (pcs):

Packing:
250 pcs / carton

Unit price excl. VAT

1+	829 Ft
5+	636 Ft
10+	605 Ft
20+	584 Ft
50+	562 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 2
3 workdays	> 500
