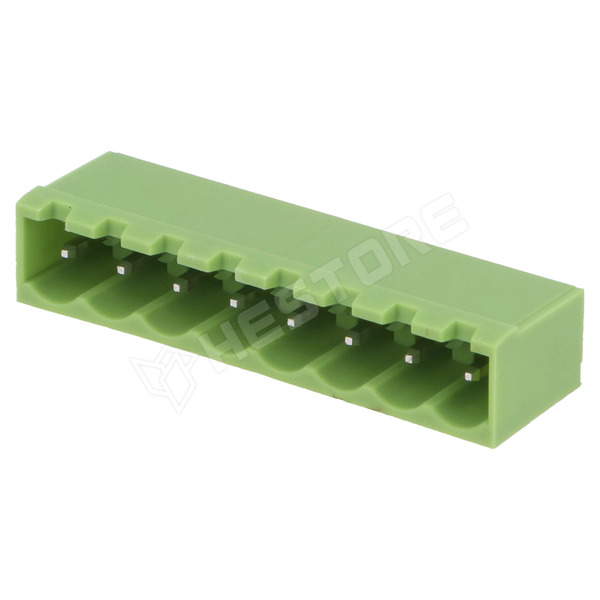

XY2500V-D(5.08)-8PIN

Pluggable terminal block, straight, 5.08mm, Number of ways: 8, green

Manufacturer partno	XY2500V-D(5.08)-8PIN
RoHS	yes
Manufacturer	XINYA
Connector	socket
Colour	green
Operating temperature	-40...105°C
Connector variant	pluggable terminal block
Kind of connector	male
Number of pins	8
Electrical mounting	THT
Mechanical mounting	on PCBs
Spatial orientation	straight
Contacts pitch	5.08mm
Type of pin configuration	1x8
Rated voltage	300V
Current rating	15A
Contact plating	tinned
Number of ways	8
Conform to the norm	UL
Contact material	brass
Body material	PA66
Flammability rating	UL94V-0
Height	12mm
Locking system	friction lock, friction lock
