STPDWN-9V-3A

Name: STPDWN-9V-3A
Brand: HESTORE
SKU: 100.423.66
Availability: InStock

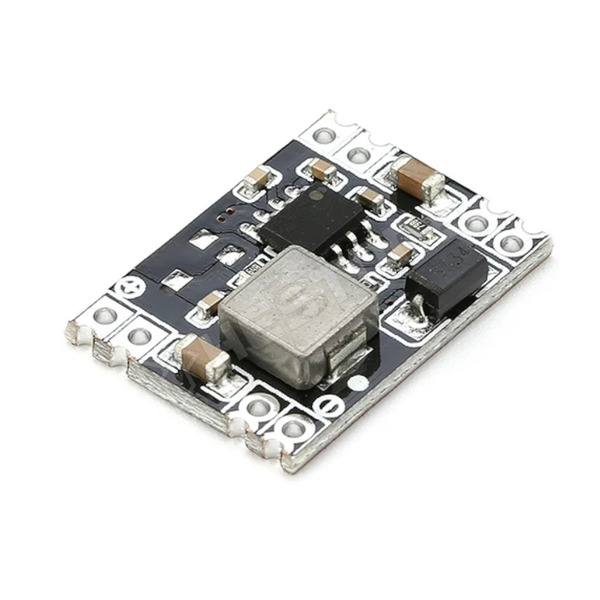

9V fixed output, 3A step down power module

Input voltage: 11 - 26V
Output voltage: 9V
Output current: 3A (Max), the current should be controlled within 1.6A for working long hours
Conversion efficiency: 96% (Max)
Output ripple: < 30mV
Operating temperature: -40℃ - 85℃
Dimension: 22.3 x 17 x 4.2mm (L x W x H)
