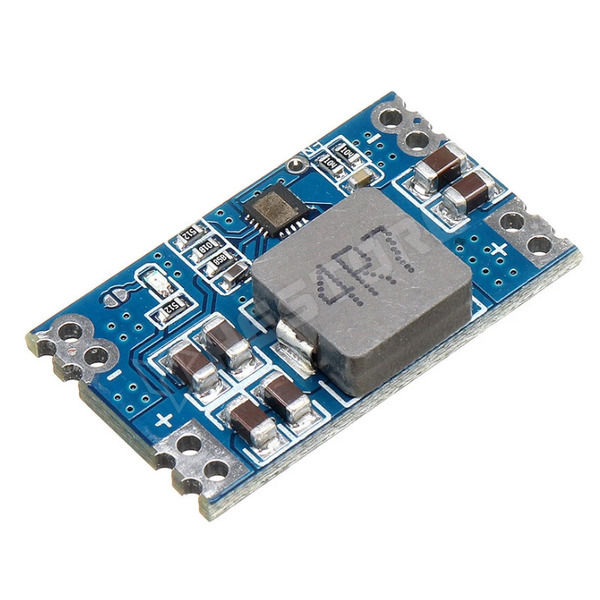

MINI560-5V-5A

DC-DC step down power supply module, 5V, 5A

Output voltage	5V DC
Input voltage	7...20V
Operating temperature	-40...85°C
Output current	5A
Power supply/converter features	step down, non-isolated, Long-distance running over 4A requires heat dissipation
Efficiency	95.6%
Dimensions	29 x 18 x 5.4mm
Operating frequency	500kHz

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.423.75

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	540 Ft
5+	358 Ft
10+	332 Ft
20+	316 Ft
50+	301 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 50
10-15 workdays	> 2000
