V100-EY9-09

Name: V100-EY9-09
Brand: HESTORE
SKU: 100.458.55
Availability: InStock

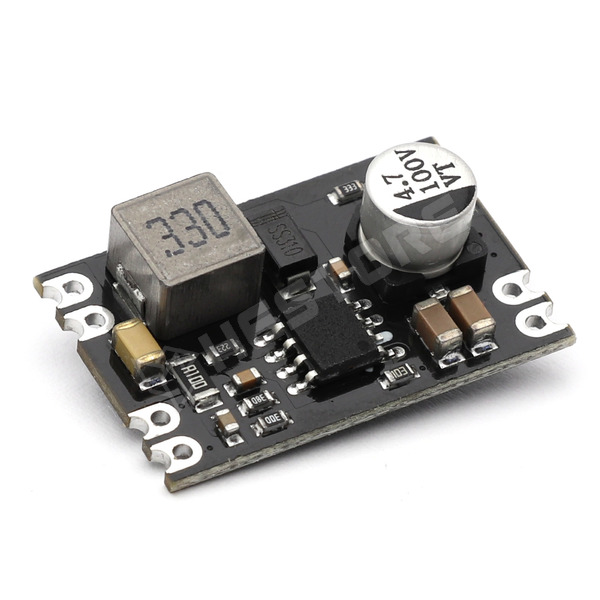

9V Step-down switching power supply module, 11V...80V, 9V 2A

Tips!
To activate the output, connect the V+ pin to the EN enable input.

Output voltage	9V DC
Operating temperature	-40...125°C
Output current	2A
Type of power supply	switched-mode, constant voltage
Efficiency	96%
Maximum output current	3A
Dimensions	25.5 x 16.5 x 7mm
Operating frequency	1MHz
Input voltage range	11...80V DC
Output voltage accuracy	±0.1V
Output ripple	30mA
Properties	unisolated, Enable input
