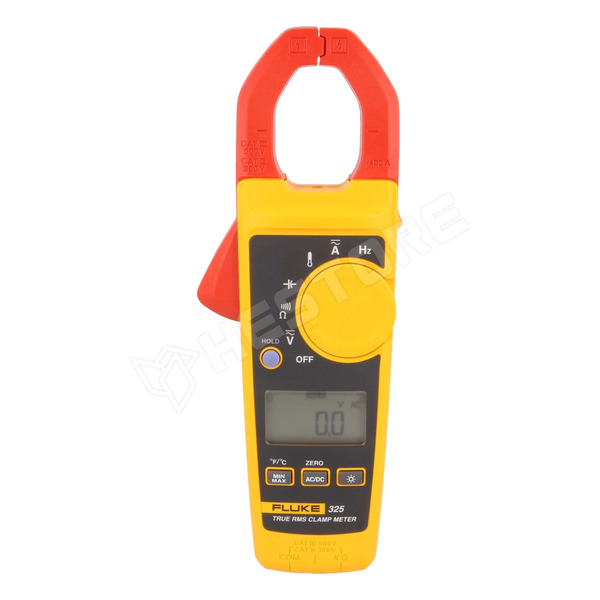

FLUKE 325

Digitális lakatfogós multiméter

Manufacturer partno	FLUKE 325
Manufacturer	FLUKE
Related items	POM-5900A/POM, POM-5904A/POM, POM-7519A
Dimensions	207x75x34mm
IP rating	IP30
Conform to the norm	EN61010 600V CAT III
Power supply	2 batteries 1,5V LR03 (AAA)
Type of meter	AC/DC digital clamp meter
Measuring instrument features	HOLD function, automatic power-off, low battery indicator, ergonomic body shape enables one-hand operation
Optional equipment	FLK-TL223 accessory set
Resistance measuring range	4kΩ, 100mΩ...400Ω, 40kΩ
Resistance measuring accuracy	±(1% + 5 digits)
Capacitance measuring range	1000µF, 0.1...100µF
Capacitance measuring accuracy	±(1% + 4 digits)
DC voltage measuring range	600V, 100mV...400V
DC voltage measuring accuracy	±(1% + 5 digits)
Frequency measuring range	5...500Hz
Continuity test	acoustic signal for R<30Ω
Standard equipment	test leads, soft cover
AC current measuring range	400A, 10mA...40A
AC voltage measuring range	600V, 100mV...400V
Weight with battery	283g
AC voltage measuring accuracy	±(1,5% + 5 digits)
DC current measuring range	400A, 10mA...40A
DC current measuring accuracy	±(2% + 5 digits)
AC current measuring accuracy	±(2% + 5 digits)
Max. diameter of measured cable	30mm
True effective value measurement	True RMS
Bandwidth for AC voltage measurements	45...400Hz
Bandwidth for AC current measurements	45...400Hz
Kind of display used	with a backlit, LCD 3,5 digit
Measurement	resistance, capacitance, DC voltage, AC current, AC voltage, DC current, frequency
Current measuring resolution	10mA
