Main category » Diodes » Bridge rectifiers »

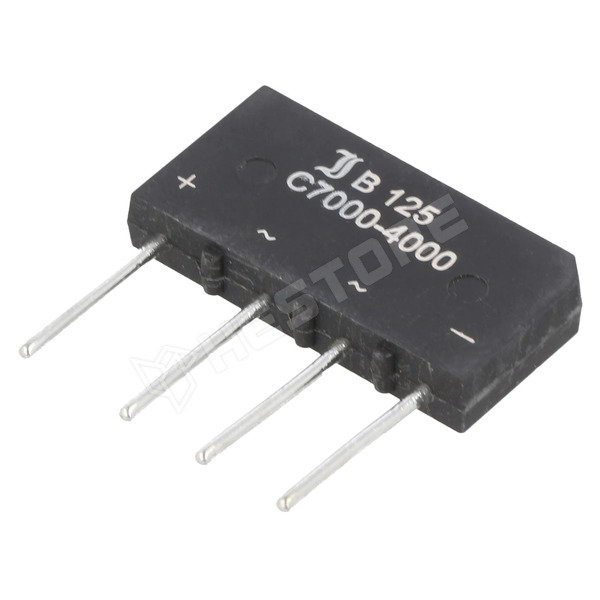

B125C7000A

Egyenirányító híd, 250V, 150A, egyfázisú

Manufacturer partno	B125C7000A
RoHS	yes
Manufacturer	DIOTEC SEMICONDUCTOR
Case	32x5,6x17mm
Max. off-state voltage	250V
Load current	7A
Kind of package	in-tray
Electrical mounting	THT
Leads	wire Ø 1.2mm
Max. forward impulse current	150A
Version	flat
Type of bridge rectifier	single-phase

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: Diotec Semiconductor AG
Postal address: Kreuzmattenstrasse 4, 79423 Heitersheim, Germany
Electronic address: https://diotec.com/

Part.No: 100.413.91

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 345 Ft
5+	1 131 Ft
10+	1 091 Ft
20+	1 062 Ft
50+	1 028 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 350
