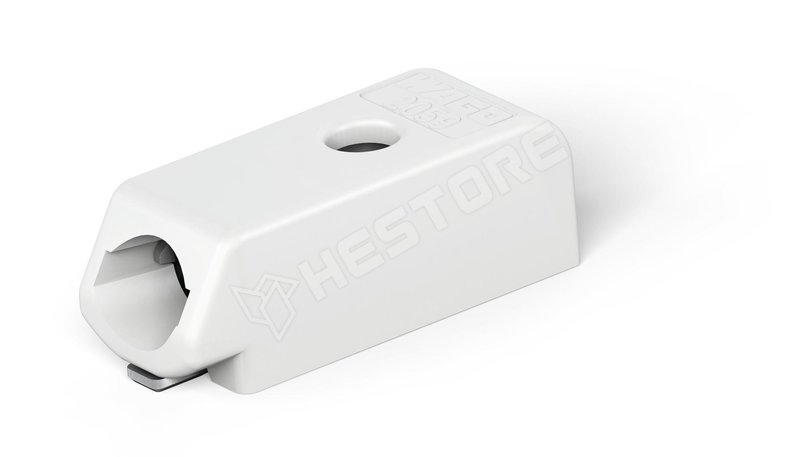

2059-301/998-403

With push button, plug-in, 3mm, Number of ways: 1, 0.14...0.34mm²

2059-301/998-403 / With push button, plug-in, 3mm, Number of ways: 1, 0.14...0.34mm<sup>2</sup> (2059-301/998-403 / WAGO)

Manufacturer partno	2059-301/998-403
RoHS	yes
Manufacturer	WAGO
Operating temperature	-60...105°C
Connector variant	plug-in, with push button, plug-in
Electrical mounting	SMT
Contacts pitch	3mm
Rated voltage	320V
Current rating	3A
Contact plating	tinned
Number of ways	1
Flammability rating	UL94V-0
Wire size	26AWG...22AWG
Connector series	2059
Connectors application	LED Light
Wire cross section	0.14...0.34mm²
Connector variant	with push button
