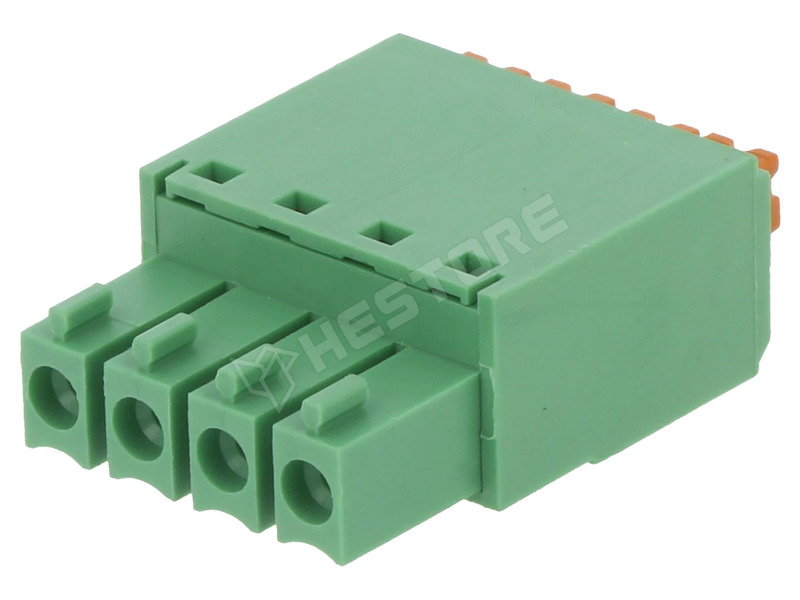

15EDGKN-3.5/4P

Pluggable terminal block with spring clamp, RM3.5, 250V, 8A, 4pin, 0.2...1mm2, female, plug

Manufacturer partno	15EDGKN-3.5-04P-14-1000AH
Manufacturer	DEGSON ELECTRONICS
Connector	plug
Colour	green
Number of terminals	4
Operating temperature	-40...105°C
Connector variant	pluggable terminal block, with push button
Kind of connector	female
Electrical mounting	spring clamp
Mechanical mounting	for cable
Spatial orientation	straight
Contacts pitch	3.5mm
Type of pin configuration	1x4
Rated voltage	250V
Current rating	8A
Number of ways	4
Conform to the norm	CE, UL, VDE
Contact material	phosphor bronze
Body material	PA66
Flammability rating	UL94V-0
Wire size	28AWG...16AWG
Locking system	friction lock
Wire cross section	0.2...1mm²
Connector variant	with push button

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.411.01

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	593 Ft
5+	409 Ft
10+	382 Ft
20+	365 Ft
50+	349 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 350
