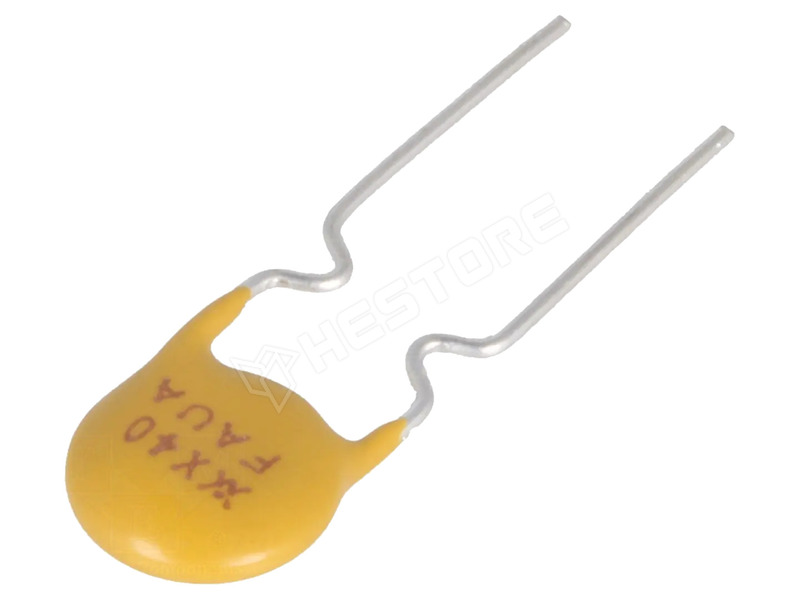

RF2566-000

PTC biztosíték, polimer, 400mA, RM5

Manufacturer partno	RXEF040
RoHS	yes
Manufacturer	LITTELFUSE (HAMLIN)
Power	560mW
Terminal pitch	5mm
Operating temperature	max. 85°C
D dimension	7.6mm
Current rating	400mA
A dimension	7.6mm
B dimension	13.5mm
C dimension	5.8mm
Max. voltage	72V
Switched current	800mA
Type of fuse	PTC polymer
Min. resistance	550mΩ
Max resistance	1.29Ω

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.409.51

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	232 Ft
5+	145 Ft
10+	122 Ft
20+	110 Ft
50+	101 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 50
3 workdays	> 4000
10-15 workdays	> 2000
