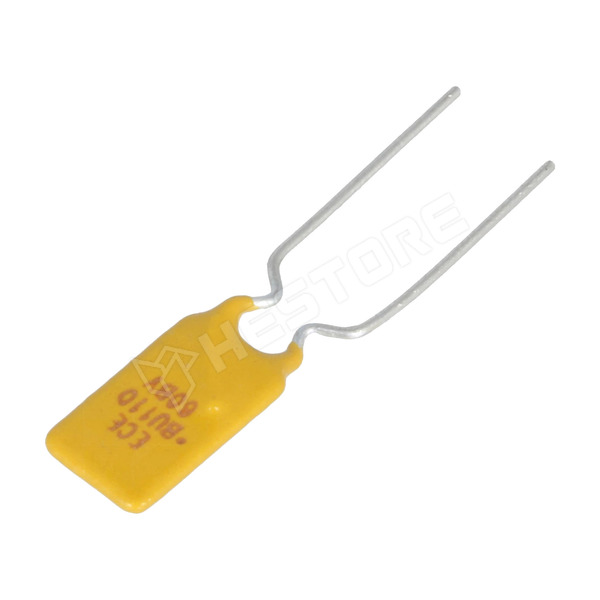

BU110

Fuse, polymer, PTC, 1.1A

Manufacturer partno	BU110
Manufacturer	ECE
Power	700mW
Operating temperature	-40...85°C
D dimension	7.6mm
Current rating	1.1A
Leads dimensions	Ø0.51x7.6mm
A dimension	7.4mm
B dimension	14.2mm
C dimension	5.1mm
Max. voltage	30V DC
Switched current	2.2A
Type of fuse	PTC polymer
Min. resistance	50mΩ
Max resistance	140mΩ
E dimension	3mm
F dimension	0.8mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.430.08

Add to favorites

Quantity (pcs):

Packing:
500 pcs / bag

Unit price excl. VAT

1+	220 Ft
5+	137 Ft
10+	115 Ft
20+	103 Ft
50+	93,83 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 50
