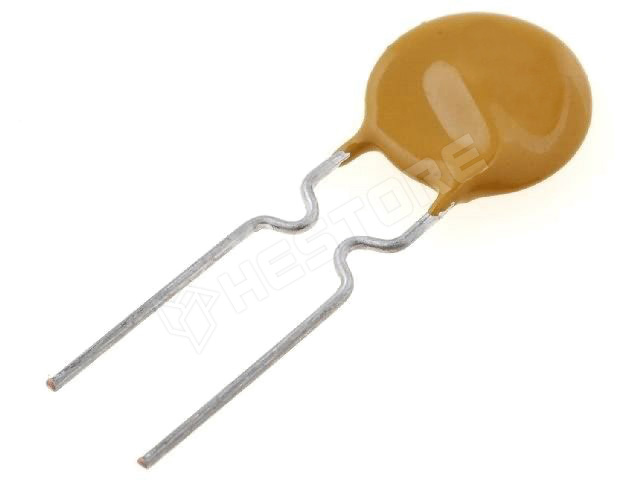

RA025-60Z

Biztosíték, polimer PTC, 250mA RM 5,1

Manufacturer partno	ERF-RA02560Z
RoHS	yes
Manufacturer	ECE
Power	450mW
Terminal pitch	5.1mm
Operating temperature	-40...85°C
D dimension	7.6mm
Current rating	250mA
Leads dimensions	0.51 x 7.6mm, Ø0.51x7.6mm
A dimension	7.4mm
B dimension	12.7mm
C dimension	5.1mm
Max. voltage	60V DC
Switched current	500mA
Type of fuse	PTC polymer
Max surge current	40A
Min. resistance	1.25Ω
Max resistance	3Ω
E dimension	3.1mm
F dimension	1.1mm

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.386.36

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	150 Ft
5+	93,44 Ft
10+	71,56 Ft
20+	60,18 Ft
50+	52,56 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 50
3 workdays	> 2500
