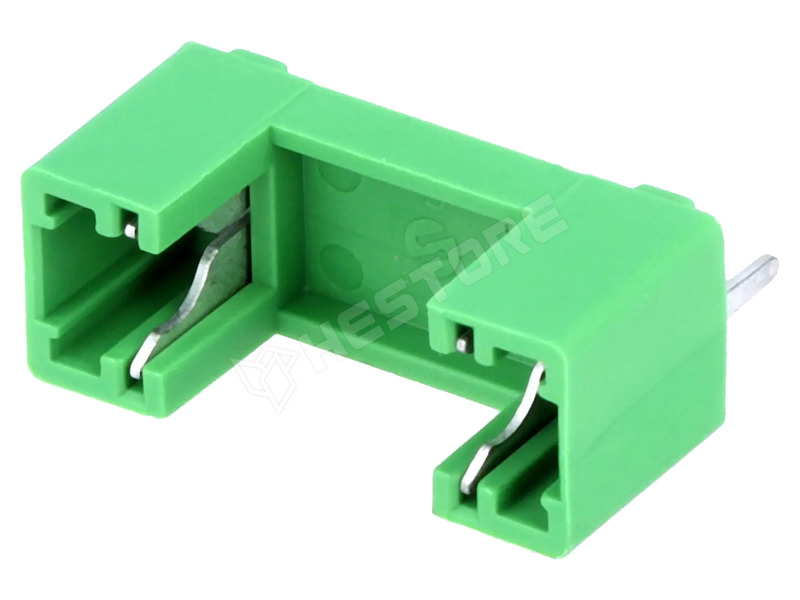

PTF/78

Biztosíték foglalat, aljzat, 5x20mm

Manufacturer partno	PTF/78
RoHS	yes
Manufacturer	Stelvio Kontek
Colour	green
Mounting	THT
Terminal pitch	22.6mm
Operating temperature	-30...85°C
Body dimensions	24.4x10.5x9.4mm
Mounting hole diameter	Ø1.5mm
Body dimensions	24.4x10.5x9.4mm
Related items	BS232
Rated voltage	250V AC
Leads dimensions	len. 3.5mm, hossz 3,5mm
Fuse size	5x20mm
Maximum current	6.3A
Body material	thermoplastic
Flammability rating	UL94V-0
Contact resistance	5mΩ
Fuses application	cylindrical fuses
Type of fuse accessories	socket
