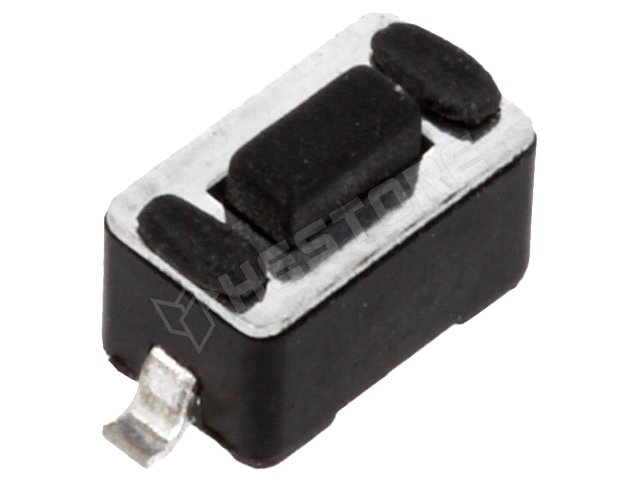

DTSM31N-F

Mikronyomógomb 1.6x7.4mm, SMT

Manufacturer partno	DTSM31N-F
RoHS	yes
Mounting	SMT
Terminal pitch	1.6x7.4mm
Operating temperature	-25...70°C
Body dimensions	3x6mm
Leads	for PCB
Illumination	none
Min. insulation resistance	100MΩ
Type of switch	microswitch TACT
Stable positions number	1-position
Number of positions	2
Switching method	OFF-(ON)
Contacts configuration	SPST-NO
Soldering temperature	250°C
Operating Force	1.6N
Max. contact resistance:	50mΩ
Button height	4.3mm
Button shape	rectangular
DC contacts rating @R	0.05A / 12V DC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.393.35

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	103 Ft
10+	64,54 Ft
50+	47,37 Ft
100+	44,53 Ft
200+	42,75 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 250
3 workdays	> 250
