KSR221G LFS

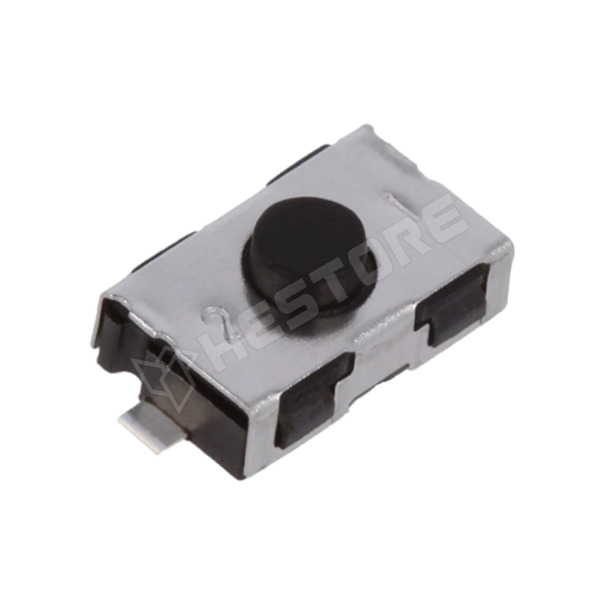

Microwave pushbutton, TACT, SPST-NO, 50mA / 32V DC, SMT, 6x3.8mm, 2N

Manufacturer partno	KSR221G LFS
RoHS	yes
Manufacturer	C&K
Series	KSR
Mounting	SMT
Kind of package	reel
Operating temperature	-40...85°C
Body dimensions	6x3.8mm
Contact plating	silver plated
Leads	for soldering
Illumination	none
Min. insulation resistance	1GΩ
IP rating	IP50
Mechanical durability	100000 cycles
Type of switch	microswitch TACT
Stable positions number	1
Number of positions	2
Switching method	OFF-(ON)
Contacts configuration	SPST-NO
Operating Force	2N
Max. contact resistance:	100mΩ
Button height	0.75mm
Button shape	round
DC contacts rating @R	0.05A / 32V DC

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.315.49

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	$ 1.175
5+	$ 0.735
10+	$ 0.662
20+	$ 0.621
50+	$ 0.586

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 25
3 workdays	> 50000
10-15 workdays	> 10000
