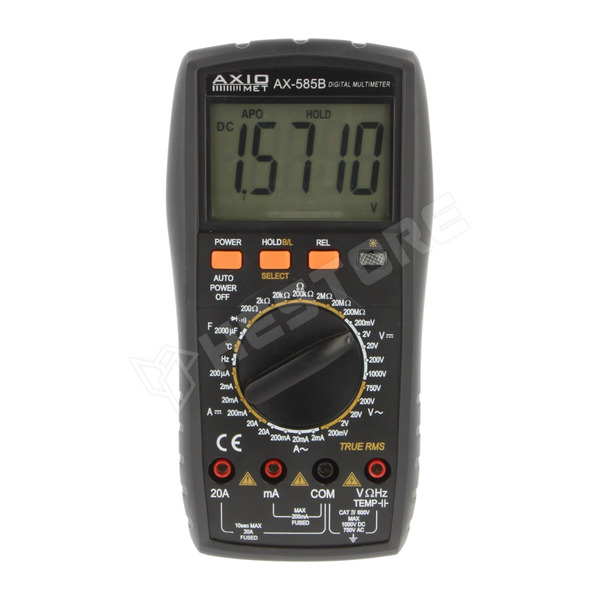

AX-585B

Multiméter, LCD 4.5 digit

Manufacturer partno	AX-585B
Manufacturer	AXIOMET
Related items	5790D, 5793D, 5794D, 5795D, 5797D, BKP60, EX871515, EX881602, EX881603, EX881605, PKT-PTA, PKT-PTF-10, PKT-PTF-20, PKT-PTF-25, PKT-PTF-30, PKT-PTF-40, PKT-PTF-50, PKT-PTF-55, PKT-PTF-56, PKT-PTF-60, SE027, SE028, SE029, SE030, SE031, SE059, SE060, SE061, SE062, SE001, SE002, SE003, SE004, SE000, TESTO-06020393, TESTO-06020645, TESTO-06024592, TESTO-06024892, TESTO-06280020, TESTO-06281292, TESTO-06287533, TP200, TP400, TP870, TP873, TP873-5M, TP882, TP-111, TP-112, TP-02, TP-03, TP-04, TP-06, TP-08, TP-09, TPK-59, TPK-62, UTT10K, UTT12
Temperature measuring range	-10...1000°C
Temperature measurement accuracy	±(0,8% + 40 digits)
Conform to the norm	EN61010 600V CAT IV
Power supply	battery 6F22 9V x1
Type of meter	digital multimeter
Measuring instrument features	multipurpose, HOLD function, automatic power-off, low battery indicator, manual ranging, impact resistant holster
Optional equipment	AX-58P soft cover, test leads AX-TL-4B1-BL, test leads AX-TL-4B1-B, test leads AX-TL-4B1-R, test leads AX-TL-BNC-4BP2, test leads AX-TLP-001, test leads AX-TLP-001T, test leads AX-TLP-002, test leads AX-TLP-003, test leads AX-TLS-001B, test leads AX-TLS-002B, test leads AX-TLS-003A, test leads AX-TLS-004A, test leads AX-TLS-005A, test leads AX-TLS-007S, test tweezers AX-TLP-TW-01
Resistance measuring range	200kΩ, 2kΩ, 20kΩ, 2MΩ, 200MΩ, 1...200Ω
Resistance measuring accuracy	±(0,4% + 5 digits)
Capacitance measuring range	2µF, 1pF...20nF, 2000µF
Capacitance measuring accuracy	±(3,5% + 10 digits)
DC voltage measuring range	1kV, 200V, 20V, 2V, 10µV...200mV
DC voltage measuring accuracy	±(0,1% + 5 digits)
Frequency measuring range	200kHz, 1...20kHz
Frequency measuring accuracy	±(3% + 150 digits)
Temperature measurement resolution	0.1°C
Diode test	1mA @3V
Continuity test	acoustic signal for R<70Ω
Standard equipment	test leads, drop-like K-type probe with banana clips 4mm TP-09
Sampling	3x/s
AC current measuring range	20A, 200mA, 1µA...20mA
AC voltage measuring range	200V, 20V, 750V, 100µV...2V
Weight with battery	400g
DC current measuring range	20A, 20mA, 200mA, 2mA, 0.01...200µA
DC current measuring accuracy	±(0,5% + 4 digits)
AC current measuring accuracy	±(1,5% + 25 digits)
True effective value measurement	True RMS AC
Bandwidth for AC voltage measurements	40...400Hz
Bandwidth for AC current measurements	40...200Hz
Kind of display used	LCD 4,5 digit (19999) 32mm
Measurement	temperature, resistance, capacitance, DC voltage, AC current, AC voltage, DC current, frequency
Dimensions (W x H x D)	97x189x35mm
Battery/ rechargeable battery	none
