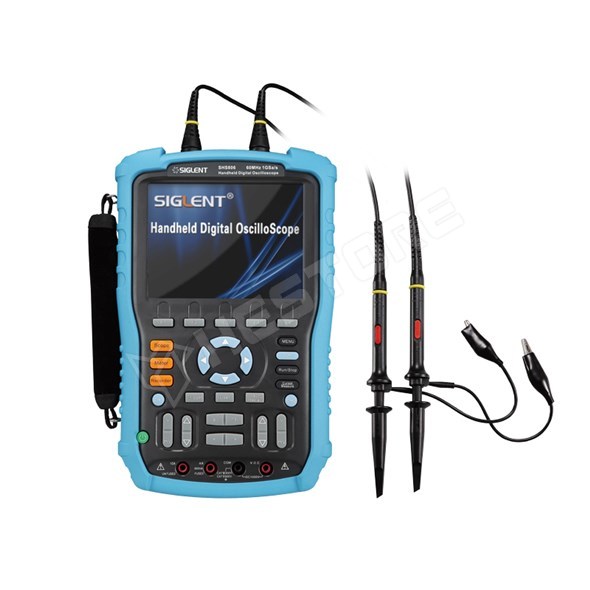

SIGLENT SHS 806

Kézi oszciloszkóp 60MHz

Recommended alternative:
» TAO3102

Manufacturer	Siglent
Number of channels	2
Dimensions	259.5x163.2x53.3mm
Type of display used	LCD 5,7" (320x234)
Type of test accessories	oscilloscope probe
Measuring instrument features	diode and continuity test, mathematical functions: addition, subtraction, multiplication an
Resistance measuring range	600Ω - 60MΩ ±(1%±5digit)
Capacitance measuring range	40nF ±(3%±10digit), 400nF, 400μF ±(4%±5digit)
DC voltage measuring range	60mV ±(1%±15digit), 60mV~1000V ±(1%±5digit)
Sampling	500MSa/s (Valós idő, Dual channel), 1GSa/s (Valós idő, Single channel), 50GSa/s (ekvivalens idő)
Type of oscilloscope	digital
Rise time	5.8ns
Input impedance	1MΩ/18pF
AC current measuring range	60mA ±(1%±5digit), 6A, 10A ±(1.5%±5digit)
AC voltage measuring range	60mV ±(1%±15digit), 60mV~750V ±(1%±5digit)
DC current measuring range	60mA ±(1%±5digit), 6A, 10A ±(1.5%±5digit)
Memory record length	2Mpts
Time base	5n...50s/div
Vertical resolution	8bit
Kind of display used	colour
