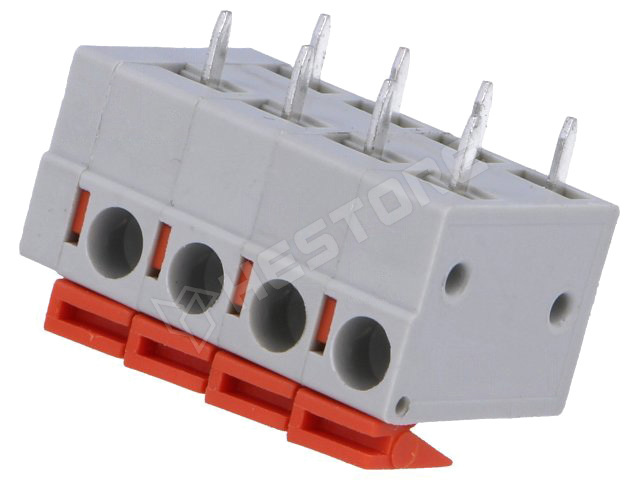

AC142R-04P-5.08
NYÁK spring pade terminal, 90 deg, 5.08mm, 4 pole, max. 0.5mm2
| RoHS | yes |
|---|---|
| Manufacturer | NINIGI |
| Connector | terminal |
| Colour | grey |
| Operating temperature | -40...105°C |
| Connector variant | with lever, PCB terminal block |
| Electrical mounting | THT, spring clamp |
| Mechanical mounting | on PCBs |
| Length | 22.86mm |
| Spatial orientation | angled 90° |
| Contacts pitch | 5.08mm |
| Type of pin configuration | 1x4 |
| Rated voltage | 250V |
| Current rating | 10A |
| Contact plating | tinned |
| Number of ways | 4 |
| Contact material | brass |
| Body material | Poliamid |
| Soldering temperature | 250°C / 5 s |
| Flammability rating | UL94V-0 |
| Height | 10.6mm |
| Depth | 13.88mm |
| Wire cross section | 0.5mm2 |
| Stripped wire length | 10mm |
| Korpusz anyaga | Poliamid |
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: NINIGI EU
Postal address: N/A
Electronic address: https://www.ninigi.com
Part.No: 100.387.44
Quantity (pcs):
Unit price excl. VAT
| 1+ | 361 Ft |
|---|---|
| 5+ | 226 Ft |
| 10+ | 202 Ft |
| 20+ | 188 Ft |
| 50+ | 177 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 15 |
| 3 workdays | > 1000 |
