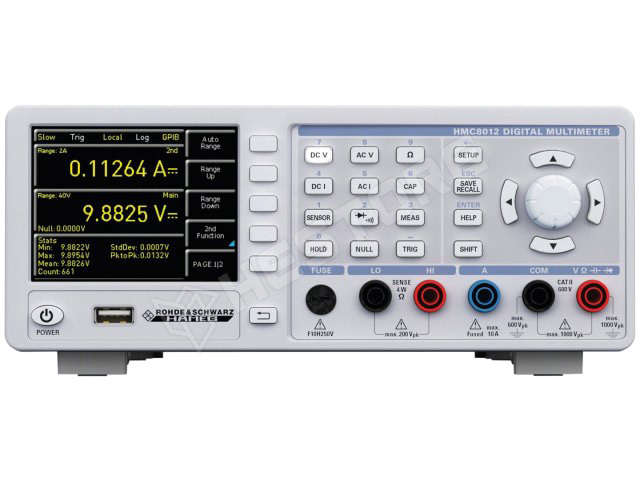

HMC8012

Asztali multiméter

Manufacturer	ROHDE & SCHWARZ
Weight	2.7kg
Interface	USB, Ethernet
Protection	anti-overload
Dimensions	222 x 88 x 280mm, 222x88x280mm
Conform to the norm	EN61010 1000V CAT I, EN61010 600V CAT II, EN61010 1000V CAT I, EN61010 600V CAT II
Plug variant	EU, UK, EU, UK
Type of meter	benchtop multimeter
Measuring instrument features	3 mérési eredmény egyszeri kijelzése
Resistance measuring range	400/4k/40k/400k/4M/40MΩ/250MΩ
Resistance measuring accuracy	±(0,015% mérés + 0,002% tartomány)
Capacitance measuring range	5n/50n/500n/5µ/50µ/500µF
Capacitance measuring accuracy	±(1% mérés + 0,5% tartomány)
DC voltage measuring range	400m/4/40/400/1000V
DC voltage measuring accuracy	±(0,015% mérés + 0,002% tartomány)
Diode test	5V, 1mA, 1mA, 5V
Continuity test	acoustic indication
Standard equipment	mains, software, test leads, user's manual
AC current measuring range	20m/200m/2/10A
AC voltage measuring range	400m/4/40/400/750V
AC voltage measuring accuracy	±(0,3% mérés + 0,05% tartomány)
DC current measuring range	20m/200m/2A/10A
DC current measuring accuracy	±(0,05% mérés + 0,01% tartomány)
AC current measuring accuracy	±(0,5% mérés + 0,05% tartomány)
True effective value measurement	True RMS AC, True RMS AC+DC, True RMS AC, True RMS AC+DC
Measurement	resistance, capacitance, DC voltage, AC current, AC voltage, DC current, hőmérséklet (opció)

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.386.11

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	499 336 Ft
5+	486 689 Ft
10+	478 350 Ft
20+	470 020 Ft
50+	457 536 Ft
