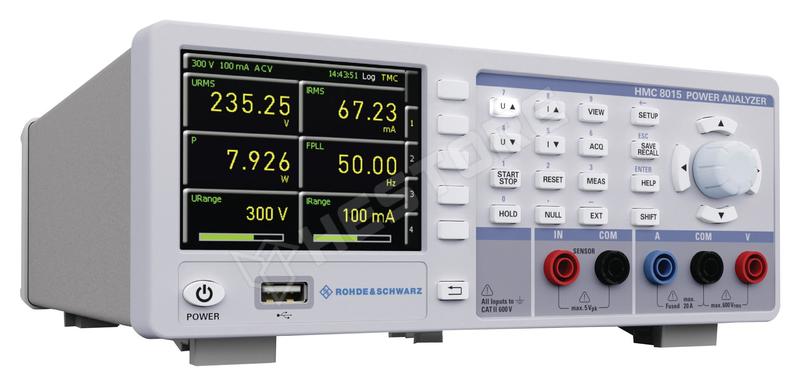

HMC8015

Power Analyser

Manufacturer partno	HMC8015
Manufacturer	ROHDE & SCHWARZ
Supply voltage	100...240V AC
Interface	USB, LAN
Converter resolution	16bit
Measuring range	50µW...12kW
Dimensions	222x88x280mm
Maximum current	20A
Display resolution	320x240
Max. voltage	600V
Measurement accuracy	0.05%
Type of meter	power analyzer
Measuring instrument features	programmable, logging data to CSV
Frequency measuring accuracy	±0,1%
Band	100kHz
Input impedance	2MΩ
Kind of display used	colour, LCD TFT 3,5"
Measurement	power
Alias	3593.8646.02
Software	LabVIEW

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.378.60

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	1 071 218 Ft
5+	1 044 286 Ft
10+	1 026 416 Ft
20+	1 008 556 Ft
50+	981 775 Ft
