UF15AC23BTH

Name: UF15AC23BTH
Brand: FULLTECH
SKU: 100.364.57
Availability: OutOfStock

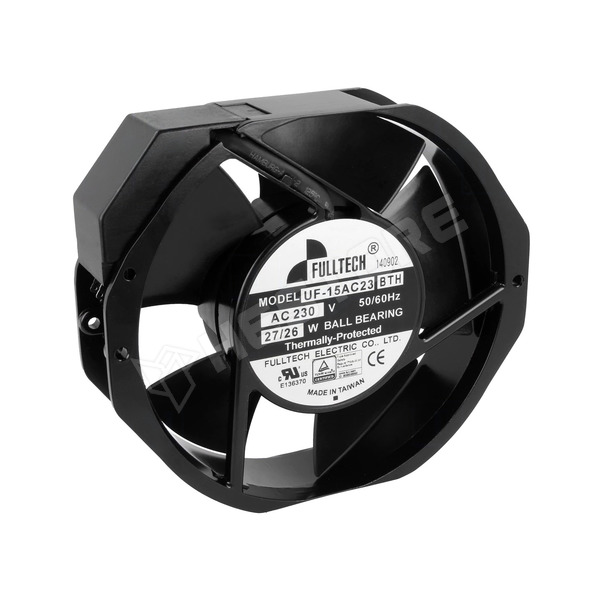

Fan, AC, 230V AC, 172x150x38mm, ball bearing, 300m³/h, shaft

UF15AC23BTH / Fan, AC, 230V AC, 172x150x38mm, ball bearing, 300m<sup>3</sup>/h, shaft (UF15AC23BTH / FULLTECH)

Tápfeszültség 230V AC
Ventilátor mérete 172x150x38mm
Teljesítményfelvétel 27W
Névleges áram 110mA
Ventilátor hatásfoka 300m3/h
Zajszint 54dBA
Csapágyfajta golyóscsapágy
Fordulatszám 2850ford/min
Súly 0.72kg
Frekvencia 50-60Hz
Szigetelés ellenállása min. 100MR
Burkolat anyaga alumínium
Üzemi hőmérséklet -40...70°C

Manufacturer partno	UF15AC23BTH
RoHS	yes
Manufacturer	FULLTECH
Size	172x151x51
Type	AC
Frequency	50-60Hz
Voltage	230V
Weight	0.72kg
Operating temperature	-40...70°C
Supply voltage	230V AC
Enclosure material	Aluminium
Current rating	110mA
Leads	connector
Min. insulation resistance	100MΩ
Type of fan	AC
Fan dimensions	172x150x38mm
Power consumption	27W
Fan efficiency	300m³/h
Noise level	54dBA
Rotational rate/speed	2850rpm
Static pressure	17mm H₂O
Kind of fan	shaft
Kind of Bearing	ball bearing
