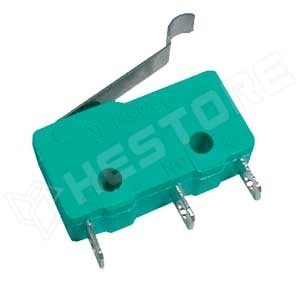

MSW 14 ON - (ON)

Mikrokapcsoló

RoHS	no
Manufacturer	VARIOUS
Terminal pitch	7.3mm
Operating temperature	-25...65°C
Body dimensions	19.8x6.4x10.6mm
Leads	for soldering
Min. insulation resistance	100MΩ
IP rating	IP40
Type of switch	microswitch SNAP ACTION
Stable positions number	1-position
Switching method	ON-(ON)
Contacts configuration	SPDT
Switches features	görgőt szimuláló mechanizmussal
Operating Force	1.5N
Lever length	17mm
Max. contact resistance:	30mΩ
Electrical life	30000cycles
AC contacts rating @R	5A / 250V AC
Összes pozíciók száma	2

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.361.51

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	291 Ft
5+	182 Ft
10+	159 Ft
20+	146 Ft
50+	136 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 50
3 workdays	> 100000
