TP4056-1A-MN

Name: TP4056-1A-MN
Brand: HESTORE
SKU: 100.356.04
Availability: InStock

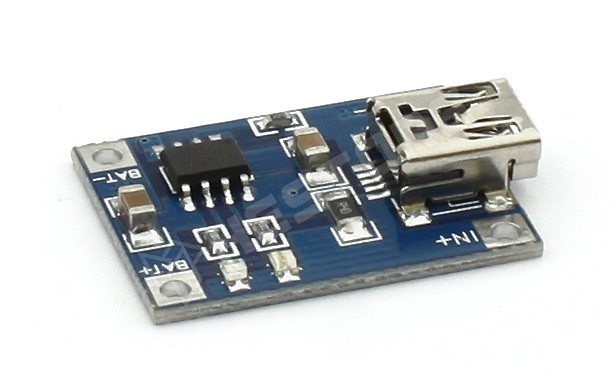

1A USB Li-Ion/Li-Po charger module

• Power supply: 5V USB-mini
• Output voltage: 4.2V DC (±1.5%) (Li-Ion cell final voltage)
• Maximum charging current: 1000mA (at RPROG=1.2kΩ, programmable in the range of 130...1000mA)
• Charging mode: constant current / constant voltage (CC/CV), C/10 ratio with automatic shutdown
• Other technical data:
- Automatic recharge if the cell voltage drops below 4.05V
- Built-in PMOSFET, no external series diode or shunt resistor required
- Charging status indication (CHRG – charging, STDBY – end of charge)
- Thermal protection: ~145°C at chip core temperature, automatic current limitation

• Operating temperature: −40...+85°C
• Dimensions: 17 × 22mm

• Note:
- Only suitable for 1-cell Li-Ion/Li-Pol batteries, not suitable for series-connected cells.
- Cooling is via the PCB ground plane.
