AR-LEONARD

Name: AR-LEONARD
Brand: HESTORE
SKU: 100.355.93
Availability: InStock

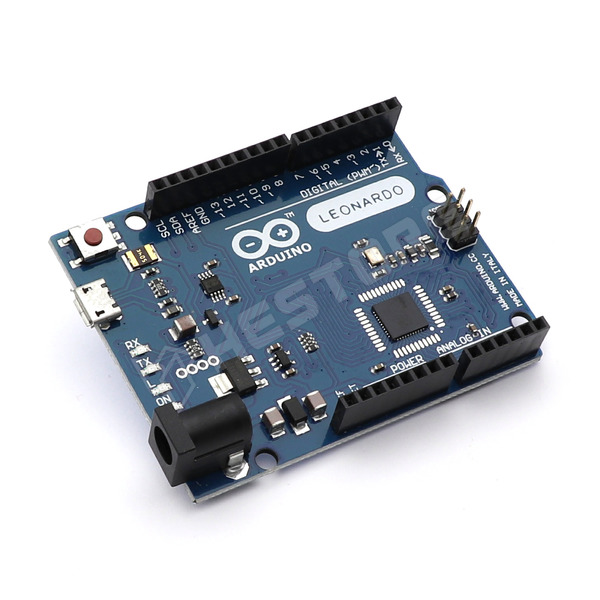

Leonardo R3 developement board with USB cable, for Arduino IDE

Microcontroller: ATmega32u4
Operating Voltage: 5V
Input Voltage (recommended): 7-12V
Input Voltage (limits): 6-20V
Digital I/O Pins: 20
PWM Channels: 7
Analog Input Channels: 12
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory: 32 KB (ATmega32u4) of which 4 KB used by bootloader
SRAM: 2.5 KB (ATmega32u4)
EEPROM: 1 KB (ATmega32u4)
Clock Speed: 16 MHz
Length: 68.6 mm
Width: 53.3 mm
Weight: 20g

RoHS	no

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.355.93

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	2 961 Ft
5+	2 681 Ft
10+	2 615 Ft
20+	2 559 Ft
50+	2 485 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 1
10-15 workdays	> 10000
