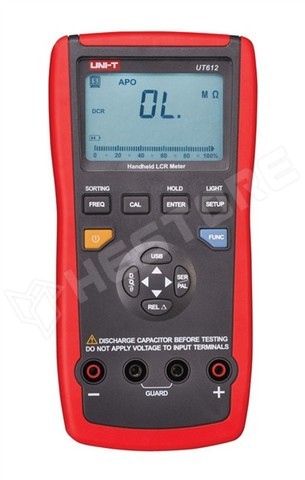

LCR-meter UT612

Inductance: 20 uH ~ 2000H (±0.5%+5)

Capacitance: 200 pF ~ 20 mF (±0.5%+5)

Resistance: 20Ohm ~ 200 MOhm (±0.3%+5)

Test frequency: 100Hz / 120Hz / 1kHz / 10kHz / 100kHz

Operation voltage: 0.6 VRMS

Test parameters: L/C/R/DCR/Q/D/θ/ESR

FEATURES:

• Display count 20000

• D/Q display count 2000

• D/Q resolution 0.001

• Auto range

• Real-time display test frequency

• Measurement mode: series/parallel

• Auto power off

• Low battery indication

• Data Hold

• Relative mode

• USB interface

• USB interface / PC data records 60000

• LCD backlight

• Analogue Bar Graph 26

• Deviation ratio measurement

• Screening function

• Calibration function

• Output impedance 120Ohm

• Auto LCR smart check and measurement

GENERAL CHARACTERISTICS:

Power supply: 9V battery (6F22) or USB

LCD size: 40 mm x 63 mm

Weight: 374 g

Product size: 96mm × 193mm × 74mm

Standard accessories: battery, SMD test clamp, USB interface cable, PC software CD, multi-purpose socket, Short circuit slice
