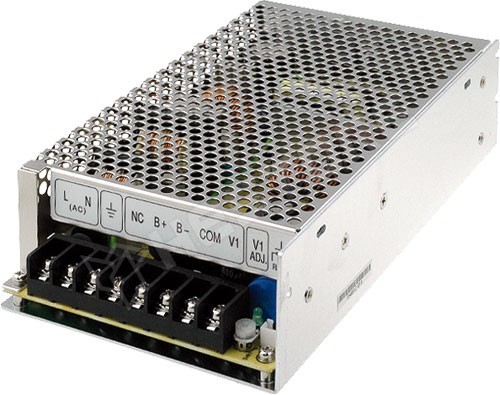

AD-155A

Ipari Tápegység, 2 x 13,8V, 151W

RoHS	no
Manufacturer	MEAN WELL
Power	151.55W
Weight	880g
Output voltage	13.8V DC, 12...14.5V DC
Series	AD-155
Mounting	mounting
Operating temperature	-10...60°C
Supply voltage	88...264V AC, 124...370V DC
Output current	10.5A
Type of power supply	buffer
Electrical connection	terminal block
Protection	overload, voltage growth, short-circuit, battery low protection
Number of outputs	2
Body dimensions	199 x 110 x 50mm
Power supply/converter features	rated parameters obtained at full load
Efficiency	80%
Related items	DRL-02, DRP-03
Additional functions	UPS
Output voltage 2	13.3V DC
Output current 2	0.5A
Kind of case	906B
Tápegység fajtája	modular

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: HESTORE Hungary Ltd
Postal address: Cziraki street 26-32, Budapest, H1163
Electronic address: https://www.hestore.hu/

Part.No: 100.353.14

Add to favorites

Quantity (pcs):

Unit price excl. VAT

1+	23 730 Ft
5+	22 598 Ft
10+	22 192 Ft
20+	21 796 Ft
50+	21 211 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
3 workdays	> 150
