NXW-10K

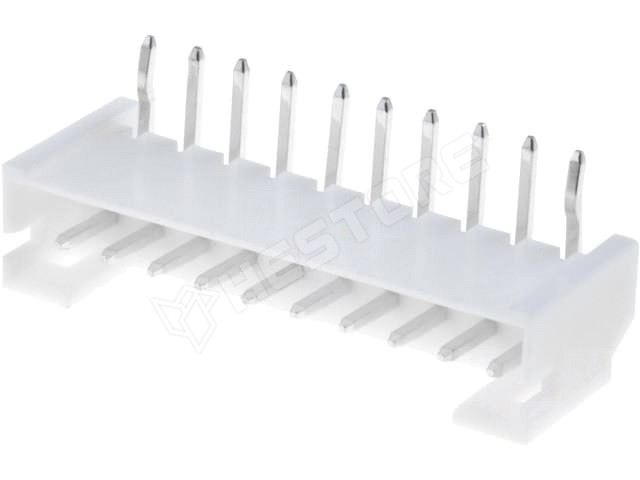

Csatlakozó (papa, 10P, 2mm, 90°)
Csatlakozó típusa : vezeték-lemez
Csatlakozó : aljzat
Neme : papa
Verzió : 90°
Érintkező raszter : 2 mm
Max. üzemi feszültség : 100 V
Próba feszültség : 800 V
Maximális áram : 1 A
Burkolat anyaga : poliamid
Érintkező bevonata : ónozott
Érintkező ellenállás max. : 20 mOhm
Szigetelés ellenállása min. : 1000 MOhm
Üzemi hőmérséklet : -25 .. 85 °C
Éghetőségi fokozat : UL94V-0
Csatlakozó : aljzat
Neme : papa
Verzió : 90°
Érintkező raszter : 2 mm
Max. üzemi feszültség : 100 V
Próba feszültség : 800 V
Maximális áram : 1 A
Burkolat anyaga : poliamid
Érintkező bevonata : ónozott
Érintkező ellenállás max. : 20 mOhm
Szigetelés ellenállása min. : 1000 MOhm
Üzemi hőmérséklet : -25 .. 85 °C
Éghetőségi fokozat : UL94V-0
| RoHS | yes |
|---|---|
| Manufacturer | NINIGI |
| Type | papa 90° |
| Connector | socket |
| Pole | 10 |
| Series | NX |
| Operating temperature | -25...85°C |
| Connector variant | wire-board |
| Kind of connector | male |
| Number of pins | 10 |
| Electrical mounting | THT |
| Enclosure material | Poliamid |
| Width | 22mm |
| Max. operating voltage | 100V |
| Spatial orientation | angled 90° |
| Contacts pitch | 2mm |
| Type of pin configuration | 1x10 |
| Contact plating | tinned |
| Maximum current | 1A |
| Max. contact resistance: | 20mΩ |
| Flammability rating | UL94V-0 |
| Kind of connector | male |
Extended distributor/manufacturer information (EU Regulation 2023/988)
Trade name: NINIGI EU
Postal address: N/A
Electronic address: https://www.ninigi.com
Part.No: 100.344.25
Quantity (pcs):
Unit price excl. VAT
| 1+ | 96,86 Ft |
|---|---|
| 5+ | 60,54 Ft |
| 10+ | 39,22 Ft |
| 20+ | 28,41 Ft |
| 50+ | 21,63 Ft |
* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs.
For modify please click
icon on top menu.
icon on top menu. | Availability | Qu. |
|---|---|
| In stock | > 100 |
| 3 workdays | > 5000 |
