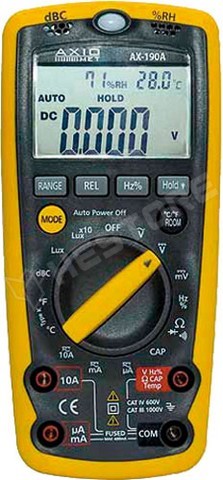

AX-190A

Name: AX-190A
Brand: AXIOMET
SKU: 100.344.05
Availability: SoldOut

Digitális multiméter

Mérőműszer tulajdonságai:

automatikus polaritás váltás
automatikus kikapcsolás
HOLD funkció (mért érték megtartása a kijelzőn)
relatív mérés funkció (REL)
túlterhelés elleni védelem
páratartalom, fényerő és hang mérés
dióda és áramkör kontinuitás teszt hangjelzéssel
méréshatár túllépés kijelző
érintés nélküli feszültség kereső
automatikus méréshatár váltás
elemkimerülés kijelzése

Standard kivitel:

mérőkábelek
K típusú pontszonda

RoHS	no
Manufacturer	AXIOMET, FLUKE
Temperature measuring range	-20...1300°C
Conform to the norm	EN61010 1000V CAT III, EN61010 600V CAT IV
Type of display used	LCD (4000)
Power supply	1 battery 9V 6F22, battery not included, set without battery
Overall dimensions (W x D x H)	78 x 48 x 170mm
Type of meter	digital multimeter
Measuring instrument features	HOLD function, diode and continuity test with buzzer, automatic power-off, low battery indicator, automatic polarization selection, REL function, autoranging, overload protection, measures temperature, humidity, illumination and sound level, overflow indicator, contactless voltage detector, low battery display
Resistance measuring range	0,1...400/4k/40k/400k/4M/40MΩ
Resistance measuring accuracy	±(1,5% + 2 digits)
Capacitance measuring range	10p...50n/500n/5µ/50µ/100µF
Capacitance measuring accuracy	±(3% + 5 digits)
DC voltage measuring range	0.1m...400m/4/40/400/600V
DC voltage measuring accuracy	±(1,5% + 4 digits)
Frequency measuring range	0.001...5/50/500/5k/50k/500k/10MHz
Frequency measuring accuracy	±(1,2% + 3 digits)
Diode test	1,4mA, 2,8V
Continuity test	acoustic signal for R<50Ω
Standard equipment	drop-like K-type temperature probe, test leads
Sampling	3x/s
AC current measuring range	0.1µ...400µ/4000µ/400m/10A
AC voltage measuring range	0.1m...400m/4/40/400/600V
Weight with battery	335g
AC voltage measuring accuracy	±(1% + 4 digits)
DC current measuring range	0.1µ...400µ/4000µ/400m/10A
DC current measuring accuracy	±(1% + 2 digits)
AC current measuring accuracy	±(1,5% + 2 digits)
Sound level measuring range	35...100dB
Duty cycle factor measuring range	0.1...99.9%
Humidity measuring range	33...99% RH
Sound level measuring accuracy	±5dB
Illumination measurement	0.001...40klux
Kind of display used	LCD (4000)
Measurement	temperature, resistance, capacitance, DC voltage, AC current, AC voltage, DC current, frequency, hangerősség, fényerő, humidity
Külső méretek (szél.x mély. x mag.)	78x48x170mm
