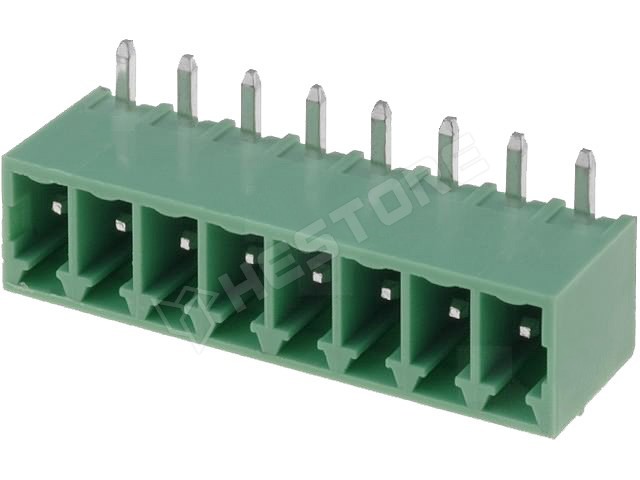

15EDGRC-3.5/8P

Name: 15EDGRC-3.5/8P
Brand: DEGSON
SKU: 100.334.11
Availability: InStock

Sorkapocs 90° 3,5mm 7A

Térbeli orientáció : 90 fokos
Érintkező raszter : 3,5 mm
Pólusok száma : 8
Névleges áram : 7A

Manufacturer partno	15EDGRC-3.5-08P-14-00A(H)
RoHS	no
Manufacturer	DEGSON, DEGSON ELECTRONICS
Case	RM3.5
Connector	socket
Colour	green
Pole	8
Orientation	90°
Pitch	3.5
Gender	papa
Operating temperature	-40...105°C
Connector variant	pluggable terminal block
Kind of connector	male
Number of pins	8
Electrical mounting	THT
Mechanical mounting	on PCBs
Spatial orientation	angled 90°
Contacts pitch	3.5mm
Type of pin configuration	1x8
Rated voltage	250V
Current rating	7A
Contact plating	tinned
Number of ways	8
Conform to the norm	CE, UL, VDE
Contact material	brass
Flammability rating	UL94V-0
Locking system	friction lock
Kind of connector	male
Korpusz anyaga	PA66
