TB-3.5-P-2P/BL-X

Name: TB-3.5-P-2P/BL-X
Brand: NINIGI
SKU: 100.333.81
Availability: InStock

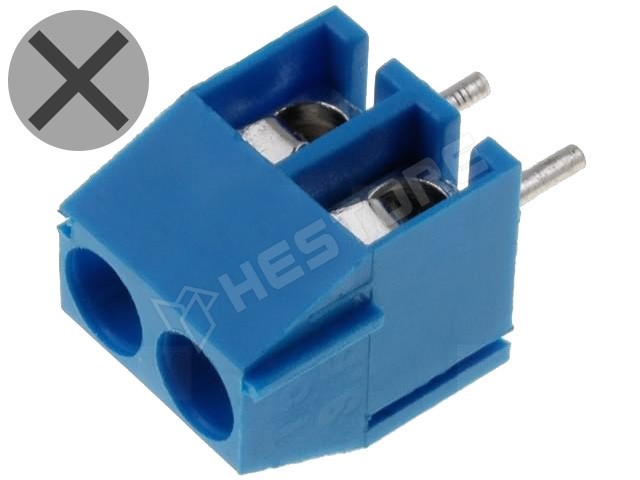

PCB terminal block, with wire protector, angled 90°, 3.5mm, Number of ways: 2, 0.5...1.5mm², blue

TB-3.5-P-2P/BL-X / PCB terminal block, with wire protector, angled 90°, 3.5mm, Number of ways: 2, 0.5...1.5mm<sup>2</sup>, blue (NINIGI)

Csavar fej : kereszthornyú

Manufacturer	NINIGI
Connector	terminal
Colour	blue
Length	7mm
Operating temperature	-40...105°C
Connector variant	with wire protector, PCB terminal block
Electrical mounting	THT, screw terminal
Mechanical mounting	on PCBs
Spatial orientation	angled 90°
Contacts pitch	3.5mm
Type of pin configuration	1x2
Rated voltage	300V
Current rating	10A
Contact plating	tinned
Number of ways	2
Contact material	brass
Body material	polyamide
Soldering temperature	250°C / 5 s
Flammability rating	UL94V-0
Height	8.4mm
Connectors features	assembling possibility
Depth	6.8mm
Wire cross section	0.5...1.5mm²
Stripped wire length	5mm
Type of connector	PCB terminal block

Extended distributor/manufacturer information (EU Regulation 2023/988)

Trade name: NINIGI EU
Postal address: N/A
Electronic address: https://www.ninigi.com

Part.No: 100.333.81

Add to favorites

Quantity (pcs):

Packing:
100 pcs / bag

Unit price excl. VAT

1+	96,11 Ft
10+	60,07 Ft
50+	42,94 Ft
100+	40,18 Ft
200+	38,46 Ft

* The prices according to your settings are displayed without VAT, that contains your custom discount if available, without shipping costs. For modify please click

icon on top menu.

Availability	Qu.
In stock	> 250
3 workdays	> 50000
